07 10 00

No. 719-B


MEL-DRAIN™ TOTAL-DRAIN™

PREFABRICATED SOIL DRAIN SYSTEM
The MEL-DRAIN TOTAL-DRAIN sheet drain system combines any regular MEL-DRAIN sheet drain section with the unique TOTAL-DRAIN section. In the TOTAL-DRAIN system, the regular sheet drain performs its normal function of water collection, while the TOTAL-DRAIN section provides both water collection and a high-profile section for water flow to the designed drainage exits. The TOTAL-DRAIN system provides three advantages over the use of perforated pipe:

• The high-profile flow section has a larger open area than does perforated pipe to accept high flows from the sheet drain and from the surrounding soil.
• The TOTAL-DRAIN section, with its manufactured transition between sheet drain and high-profile section, provides a secure flow path, which is not dependent on field installation.
• The system is fast and easy to install. Eliminates select backfill required to give perforated pipe strength. Standard connectors and corner guards are available.

The TOTAL-DRAIN works with any of the MEL­-ROL_® drainage products.

TOTAL-DRAIN is a two-part, prefabricated geocomposite drain consisting of a formed 24″ high PVC core covered on one side with a non-woven, needle-punched polypropylene filter fabric. The top section is 12″ of 7/16″ core for water collection. The bottom section is 12″ of 1″ thick for water collection and horizontal water flow to designated exits. The fabric allows water to pass into the drain core while restricting the movement of soil particles, which might clog the core. The core allows the water to flow to designated drainage exits. Full-coverage protection is provided to waterproofing materials.

MEL-DRAIN TOTAL-DRAIN
Section Properties

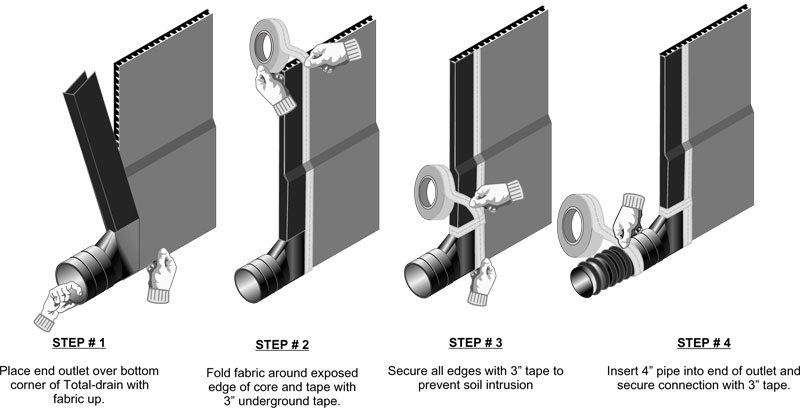

MEL-DRAIN Rolled Matrix Drainage Installation Instructions Using TOTAL­DRAIN or Pipe

REQUIRED MATERIALS
1.) 2′ x 50′ rolls of TOTAL-DRAIN sheet drain
2.) 4′ x 50′ rolls of MEL-DRAIN rolled matrix drainage, if full wall drainage is required
3.) TOTAL-DRAIN sheet drain corner guards
4.) 3″ wide underground tape
5.) Attachment materials (see below)
6.) Knife or scissors, rubber hammer

UNIVERSAL™ OUTLET FITTINGS

DRAIN ATTACHMENT METHODS
For attaching drain to waterproofing material, concrete, or wood, several methods may be used, including metal stick pins, nails driven through washers or wood lathing, construction adhesives, or double-sided tape. Discuss material compatibility with waterproofing supplier before using adhesive. Typically, any method used for attaching waterproofing protection board will work for drain. For attaching drain to bare earth, 4 – 8″ anchor pins with washers work well.

Clean Wall/Waterproof/Insulate
Clean wall and apply waterproofing or insulation if required.

Installing First Row of Drain
(TOTAL-DRAIN Row)
The first row of drain to be installed is the TOTAL­-DRAIN at the bottom of the wall. The drain should sit on top of the footing with the high-profile part of the drain at the bottom to provide high lateral water flow.

If not using MEL-DRAIN rolled matrix drainage for full water coverage, close the top end of the drain to prevent soil intrusion by folding the fabric behind the drain. Close the high-profile section with 3″ underground tape.

UNIVERSAL™ TEE FITTINGS

Going Around Corners … Bend drain to make inside corners. For outside corners, cut the low-profile core flush with corner and tape edges. Slit fabric on high-profile section, bend around corner, and place corner guard with fabric over slit of high-profile drain. Secure with underground tape.

Installing Next Roll of TOTAL-DRAIN … To attach the next roll of TOTAL-DRAIN drain, cut one row of low-profile dimples from each end of the two sections to be joined. Do not cut fabric. Interlock one row of the high-profile section and secure connection. Overlap fabric and apply 3″ wide underground tape from top to bottom of joint to prevent soil intrusion.

Connecting MEL-DRAIN Rolled Matrix Drainage to TOTAL-DRAIN … If full wall drainage is required, attach MEL-DRAIN rolled matrix drainage above TOTAL-DRAIN sheet drain. MEL-­DRAIN rolled matrix drainage may be installed either horizontally or vertically. When installed vertically, the edge of the core with flange should be facing direction opposite of TOTAL-DRAIN water flow. Fold back fabric at top of TOTAL-DRAIN and rest (or shingle) MEL-­DRAIN rolled matrix drainage on top of TOTAL-DRAIN core flange. Cover fabric seam (facing down) and secure with 3″ tape.

LEED INFORMATION
May help contribute to LEED credits:
• EA Credit 1: Optimize Energy Performance
• IEQ Credit 3.1: Construction Indoor Air Quality Management Plan – During Construction
• IEQ Credit 7.1: Thermal Comfort – Design
• MR Credit 2: Construction Waste Management
• MR Credit 4: Recycled Content
• MR Credit 5: Regional Materials
• SS Credit 6.1: Storm Water Design: Quantity Control
• SS Credit 6.2: Storm Water Design: Quality Control
• WE Credit 1: Water-Efficient Landscaping
• WE Credit 2: Innovative Wastewater Technologies

Material last updated July 2011.

03 15 00

DATA SHEET 3150-312

Related Content: Material Safety Data Sheet

PVC WATERSTOPS

DESCRIPTION
Premium PVC WATERSTOPS are manufactured from premium quality thermoplastic resins, which are plasticized and stabilized for controlled properties. For consistent quality, no reclaimed PVC is used. They are extruded in a variety of thicknesses, widths, and centre bulb sizes. The most-used sizes are illustrated in this data sheet, but a variety of other sizes are available.

“T”, “X,” and “L” spliced sections are available on special order.

USES
PVC WATERSTOPS are used in the prevention of the passage of water through joints of liquid-containing or liquid-excluding structures, foundation walls, tunnels, and similar concrete construction. Other applications include swimming pools, reservoirs, water and sewage treatment plants, retaining walls, culverts, bridge abutments, and dams.

FEATURES/BENEFITS

• PVC compound has unsurpassed qualities of ease of handling and low temperature flexibility.
• Centre bulb accommodates limited shear movement.
• Multi-rib web design anchors the waterstop securely in the concrete.
• Supplied in coils, which are easily handled, flexible, and may be bent around corners or formed in curves as required.
• Can be jobsite spliced with specifically designed, thermostatically controlled, electric splicing irons.
• Not susceptible to oxidation or fatigue deterioration, as with metal or rubber.
• Resists attack by acids (except organic acids), alkalis, chlorinated water, seawater, and natural salts – even diesel oil.
• Does not set up electrolysis with structural or reinforcing steel and will not discolour concrete.

PRECAUTIONS
Proper installation is essential. Voids, honeycombing, segregation of the mix, or any condition which leads to greater concrete permeability are to be avoided.

APPLICATION

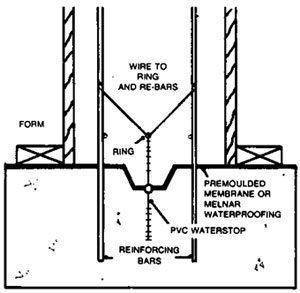

Secure the waterstop in place, using split forms or other suitable method, to ensure correct positioning and proper embedment of the waterstop in the concrete. Position the bulb exactly in the middle of the joint.

Vibrate the concrete around the waterstop thoroughly to eliminate voids or honeycombs and to ensure effective bonding of the concrete to the waterstop ribs.

Before second pour, place copper-clad steel rings as far as possible from the outer edge of the waterstop. Slip #16 gauge tie wires through the rings and secure to the forms or to the reinforcing steel. Provide sufficient number of ties to maintain the waterstop in position during the second pour.

Splicing can be accomplished by softening the ends of PVC WATERSTOPS to melting point 200° C ± 10° C (392° F ± 50° F) over an indirect heat source. Thermostatically controlled, Teflon-covered welding irons are recommended (available from W. R. MEADOWS). When the plastic begins to melt, place the ends together in direct alignment and hold firmly in position until the plastic cools (about 20 seconds).

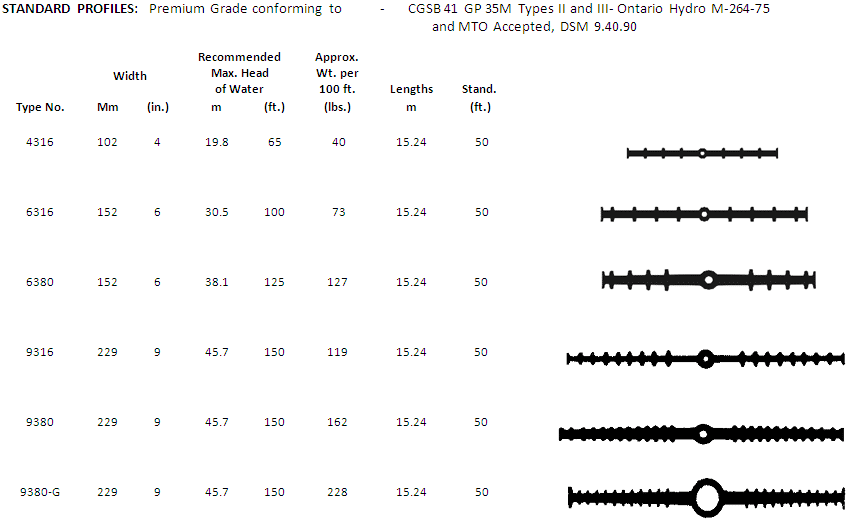

SELECTION
Select width which will withstand the hydrostatic pressures on the joint. (See table.) Consider the dimensions of the joints at the time of pouring and the expected movement between the segments. Types less than 152.4 mm (6″) wide are not recommended for joints more than 12.7 mm (1/2″) wide at time of pouring. PVC WATERSTOPS must be correctly positioned for maximum efficiency. Select a type that is thick enough to remain positioned during the concrete pours. Thinner types can be wired to surrounding reinforcement. Heavier sections are recommended for larger structures that are not reinforced.

MASTERFORMAT NUMBER AND TITLE
03 15 00 – Concrete Accessories

LEED INFORMATION
May help contribute to LEED credits:

• MR Credit 4: Recycled Content
• MR Credit 5: Regional Materials

Material last updated December 2011.


Note 1 – FLOOR-TOP STG PRIMER may be used in some applications where the concrete substrate may not be too porous. Use FLOOR-TOP STG PRIMER diluted at an application rate of 200 ft.²/gal. (5 m²/L). Two coats of the diluted primer will be required. Always perform a test in a sample area if there is a concern on primer type suitability. If the existing concrete is not properly sealed, the performance, appearance, and adhesion of FLOOR-TOP STG will be compromised.

Note 2 – The wood floor must meet the requirements of “engineered approved wood subfloors” such as the National Floor Covering Association’s floor covering specification manual. The wood floor must be sound and have no movement due to deflection. Such subfloor wood underlayments include APA-rated Group 1 exterior grade plywood, CC-plugged or better, conforming to US Product Standard PS-1 or COFI-Classified SELECT or exterior grade plywood conforming to CSA-0121 Standard for Douglas Fir. In addition, the use of metal or synthetic lath is required.

Note 3 – Even though steel is a suitable substrate when properly primed with an epoxy primer, such as the REZI-WELD LV sand broadcast method, any movement due to flexing and/or expansion or contraction due to temperature variations may result in loss of adhesion and cracking.

Follow all recommendations as outlined on the technical data sheet for FLOOR-TOP STG. This is only a guide for reviewing the appropriateness of the primer; this is not an application guide, nor a stand-alone technical guide, but should be used by a professional to aid in determination of primer type.

FLOOR-TOP STG Data Sheet

07 00 00

No. 706-B

Related Content: Material Safety Data Sheet

REINFORCING FABRIC HCR
Reinforcement Material

DESCRIPTION
REINFORCING FABRIC HCR is a spun-bonded polyester hot/cold reinforcing fabric.

USES
REINFORCING FABRIC HCR is designed to be used as a standard reinforcement material for the W. R. MEADOWS line of building envelope products, including HRM 714 and HYDRALASTIC 836. It is used to reinforce the various membranes over cracks, construction joints, and changes-in-plane. The product can also be used with the AIR-SHIELD_™ line of air barriers from W. R. MEADOWS for taping of joints for optimum performance. REINFORCING FABRIC HCR can also be used in door and window flashings.

PACKAGING
Rolls of:
3″ x 600′ (76 mm x 183 m)
9″ x 600′ (229 mm x 183 m)
12″ x 600′ (300 mm x 183 m)
39″ x 600′ (991 mm x 183 m)

TECHNICAL DATA


LEED INFORMATION
May help contribute to LEED credits:

• MR Credit 2: Construction Waste Management
• MR Credit 4: Recycled Content
• MR Credit 5: Regional Materials

This material last updated April 2013.

07 10 00

Contenu Relié: Fiche Signalétique

Fiche Technique 7100-201A

VIBRAFLEX® MTO
Panneau de Protection Imperméabilisant

DESCRIPTION
Le Panneau de Protection Imperméable VIBRAFLEX MTO est un panneau à noyau semi-flexible composé d’un noyau d’asphalte renforcé de minéraux entre deux couches constituées d’un mat de fibre de verre imprégné d’asphalte. Il est spécialement fabriqué pour être conforme aux spécifications du Ministère des transports de l’Ontario.

UTILISATION
Protège les membranes imperméabilisantes d’asphalte caoutchouté appliqués à chaud pour les tabliers de pont contre les dommages causés par la circulation lors de la construction et au cours de l’application de la couche de finition de béton à base de ciment Portland ou d’asphalte.

CARACTÉRISTIQUES
Absorbe les chocs causés par la mise en place de la couche de finition de béton ou d’asphalte et la circulation normale du chantier sur les dalles imperméabilisées.

Protège la membrane de la pénétration des agrégats pointus.

PROPRIÉTÉS – Testé selon OPSS 1215


NORMES
Approuvé par le Ministère des transports de l’Ontario
O.P.S.S. 1215, O.P.S.S. 914, D.S.M. 9.90.60

APPLICATION
Installer de façon à former une couche protectrice continue par-dessus la membrane imperméabilisante selon la norme OPSS 914.

Les feuilles peuvent être coupées facilement en utilisant un couteau de couvreur.

Les panneaux de protection doivent être couchés sur la membrane d’asphalte en plaçant la longueur perpendiculairement au tablier tandis que la surface est encore collante. Aucun matériau ni substance permettant de supprimer le poisseux ne doit être appliqué sur la membrane avant l’application du panneau de protection. Les panneaux de protection doivent être installés afin que les bords se chevauchent de 12 à 25 mm (1/2 à 1 po) à la fois longitudinalement et transversalement. L’extrémité des panneaux de protection ne doit pas se situer à plus de 6 mm (1/4 po) de toutes les bordures, drains verticaux et joints d’expansion verticaux. Les panneaux de protection doivent être placés de façon à ce que les joints longitudinaux (dans la direction de la circulation) soient décalés d’au moins 150 mm.

Le matériau de la couche d’accrochage doit être appliqué sur le couvert de panneaux de protection avec un équipement approuvé fournissant une application uniforme au taux de couverture requis. La couche d’accrochage doit être appliquée seulement si les panneaux de protection sont propres et secs. La couche d’accrochage sur le couvert de panneaux de protection doit être placée suffisamment longtemps avant le pavage afin de permettre un bon mûrissement. Le matériau de la couche d’accrochage dilué devra être appliqué à un taux de couverture de 0,5 l/m².

La couche de liaison doit être installée dans la semaine suivant l’imperméabilisation. La circulation de l’équipement de pavage ne doit pas être permise sur la couche d’accrochage tant que celle-ci n’est pas totalement mûrie.

PRÉCAUTIONS
Lire et suivre les informations sur l’application, les précautions et la fiche signalétique.

SPÉCIFICATION
Section 07 10 00.

2008-06

SEALTIGHT® est une marque de commerce enregistrée de W. R. Meadows du Canada
Garantie: W. R. Meadows du Canada garantit qu’au moment et à l’endroit ou nous faisons la livraison, nos matériaux seront de bonne qualité et se conformeront à nos normes publiées, alors en vigueur à la date de l’acceptation de la commande, sauf en ce qui concerne les variations ne se rapportant pas aux matériaux LA GARANTIE CI-DESSUS SERA EXCLUSIVE ET REMPLACERA TOUTES AUTRES GARANTIES, EXPRIMEES OU SOUS-ENTENDUES, Y COMPRIS TOUTES GARANTIES SOUS-ENTENDUES DE COMMERCIALISATION ET D’ADAPTATION A UN USAGE PARTICULIER ET TOUTES LES AUTRÉS GARANTIES APPLICABLES PAR LA LOI, EN COURS D’ACTION, PAR COUTUME COMMERCIALE OU AUTREMENT. En tant que recours exclusif pour toute infraction à cette garantie, nous remplacerons les matériaux défectueux, à condition cependant que l’acheteur examine les matériaux à la réception et nous avise promptement par écrit de toute défectuosité avant que les matériaux ne soient utilisés ou incorporés dans une construction. Trois mois après la livraison des matériaux par W. R. Meadows du Canada, toutes nos garanties et autres obligations en ce qui concerne la qualité des matériaux ainsi livrés seront considérées comme étant remplies et toutes nos responsabilités à cet égard seront terminées, et aucune poursuite pour infraction à l’une de ces obligations ne pourra donc être entamée. W. R. Meadows ne sera en aucun cas responsable des dommages fortuits. A moins d’un accord contraire formulé par écrit, aucune garantie n’est offerte pour des matériaux qui ne sont pas fabriqués par W. R. Meadows du Canada. Nous ne pouvons pas garantir, et d’aucune façon nous ne garantissons, aucune méthode particulière d’utilisation ou d’application, ni les performances des matériaux sous aucune condition particulière. Ni cette garantie, ni notre responsabilité ne peuvent être prolongées, ni amendées par nos vendeurs, distributeurs ou représentants, par les représentants de nos distributeurs, ni par aucun renseignement de vente ou dessin.

07 13 00

No. 717

Related Content: Material Safety Data Sheet: (USA)

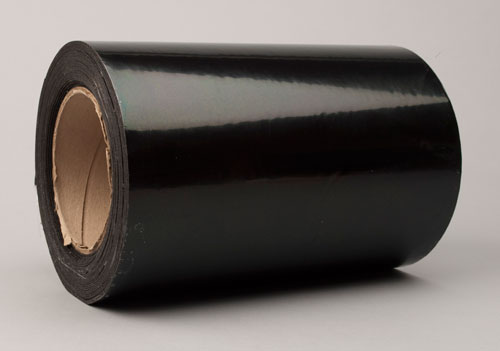

PRECON_® FABRIC TAPE

DESCRIPTION
PRECON FABRIC TAPE is a self-adhering tape comprised of a rubberized asphalt waterproofing membrane laminated to a geotextile layer of non-woven polypropylene on one side and a release paper on the other.

USES
PRECON FABRIC TAPE is used around pipe penetrations and end laps. The product can also be used on terminations, top edges of vertical applications, and perimeter terminations on horizontal applications.

FEATURES/BENEFITS

• Non-woven side bonds to poured concrete.
• Self-adhesive side bonds to most surfaces.
• UV resistant.
• Self-adhesive.

PACKAGING
12″ x 50′ (30.48 cm x 15.24 m) Rolls, 4/carton.

APPLICATION
Application Method … Remove release paper prior to application. Use firm hand pressure to ensure PRECON FABRIC TAPE is secured to surface and will not peel. Only remove as much release paper as needed to properly apply material. For best adhesion, MEL-PRIME_™ or MEL-PRIME W/B from W. R. MEADOWS is recommended.

Penetrations and Protrusions … Detail around all horizontal and vertical penetrations using MEL-ROL LIQUID MEMBRANE (two-component) from W. R. MEADOWS. Apply MEL-ROL LIQUID MEMBRANE by forming a fillet around the pipe or protrusion, overlapping the fabric side of PRECON and the protrusion a minimum of 2 ½” (64 mm). If the gap between the protrusion and the membrane is greater than ½” (13 mm), apply PRECON FABRIC TAPE over the fully-cured MEL-ROL LIQUID MEMBRANE (minimum 24 hours cure required). All penetration and protrusion surfaces must be clean, rust-free, and sound prior to application of MEL-ROL LIQUID MEMBRANE.

End Laps … At terminations of PRECON, apply 12″ (30.48 cm) wide area of PRECON FABRIC TAPE with 6″ (15.2 cm) on each side of lap edge. For best results, use MEL-PRIME adhesive over 12″ (30.48 cm) area prior to application of tape.

Patching … Prior to placing concrete into area, inspect PRECON membrane for punctures or damage and repair as necessary with POINTING MASTIC from W. R. MEADOWS and/or additional PRECON FABRIC TAPE.

LEED INFORMATION
May help contribute to LEED credits:

• EA Credit 1: Optimize Energy Performance
• IEQ Credit 3.1: Construction Indoor Air Quality Management Plan: During Construction
• IEQ Credit 7.1: Thermal Comfort – Design
• MR Credit 2: Construction Waste Management
• MR Credit 5: Regional Materials

Material last updated August 2012.


Learn more about the Verizon Data Center project on our blog.


03 39 23

NO. 375

Related Content: Material Safety Data Sheet: (USA)

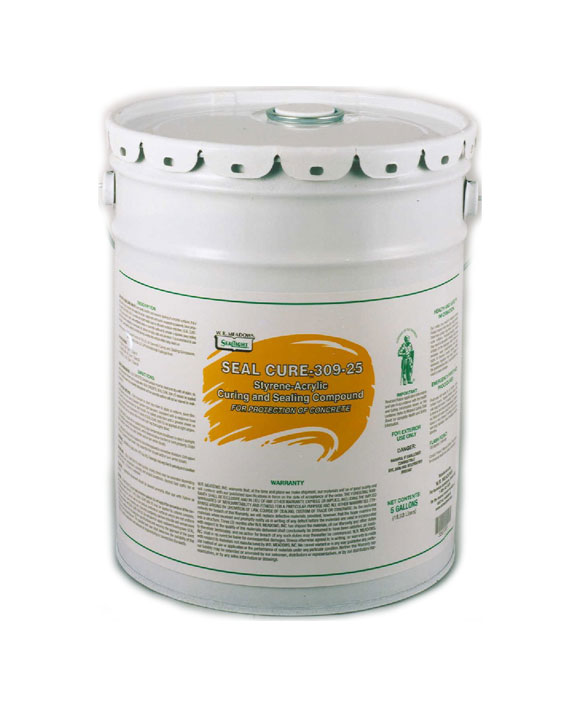

SEAL CURE_TM-309-25
Concrete Curing and Sealing Compound

DESCRIPTION
SEAL CURE-309-25 is a clear, ready-to-use formula of styrene-acrylic polymers and quick evaporating solvents, which cures and/or seals freshly placed and/or existing concrete.

When properly applied, SEAL CURE-309-25 provides a premium-grade seal for optimum moisture retention, producing harder, denser concrete. The use of SEAL CURE-309-25 will help minimize hair checking as well as premature cracking, dusting, spalling, and other common defects that result when the concrete is not properly cured, or the workmanship, air entrainment, and water/cement ratios vary. SEAL CURE-309-25 is easy and economical to use and apply. It dries quickly to protect new exterior concrete surfaces during construction. When used on existing concrete, SEAL CURE-309-25 restores surfaces to a newer and brighter appearance, allowing easier cleaning and maintenance.

USES
SEAL CURE-309-25 may be used on freshly placed and finished exterior concrete surfaces, aged concrete surfaces, and concrete walls. It is ideal for use on industrial and commercial concrete surfaces, sidewalks, parking decks, driveways, etc., or any place a medium-sheen finish is desired. SEAL CURE-309-25 can be applied to colored concrete, but mottling may occur.

For interior applications, specify and apply VOCOMP_®-20 or VOCOMP-25 curing and sealing compounds from W. R. MEADOWS.

FEATURES/BENEFITS

• Breathable film allows moisture in cured concrete to evaporate.
• Provides an economical, durable, tough, uniform, long-lasting film finish on exterior concrete surfaces.
• Cures, hardens, dustproofs, and seals freshly placed concrete simultaneously in one application.
• Produces a premium-grade seal yielding optimum moisture retention.
• Minimizes hair-checking, cracking, dusting, spalling, and other defects common to improperly cured or uncured concrete.
• Provides improved resistance to chemicals, oil, grease, de-icing salts, and abrasion during construction.
• Provides an attractive sheen that enhances the natural appearance of concrete.
• Applies easily … dries quickly for less downtime.
• Permits easy cleanup and housekeeping … reduces floor maintenance costs.
• Minimizes excessive shrinkage.
• Increases both compressive and tensile strengths for greater resistance to cracking and surface crazing.

PACKAGING
5 Gallon (18.93 Liter) Pails
55 Gallon (208.20 Liter) Drums

COVERAGE
300 – 600 ft.²/gal. (7.37 – 14.73 m²/L). Coverage may vary due to the texture and porosity of the substrate.

SHELF LIFE
When stored indoors and in original, unopened containers at temperatures between 40 – 90° F (4 – 32° C), shelf life is a minimum of two years from date of manufacture.

SPECIFICATIONS
AASHTO M 148, Type 1, Classes A & B
ASTM C 1315, Type I, Class B
ASTM C 309, Type 1, Classes A & B
Dried film is USDA Accepted
U.S. EPA Architectural Coatings Rule

TECHNICAL DATA

Appearance	Clear
Solids Content	26%
Weight/Gallon	7.6 lb.
Acid and Alkali Resistance	Good
Wearing Quality	Good


APPLICATION
Surface Preparation … Existing (Old) Concrete: Concrete surface must be clean and dry with all stains, oil, grease, dust, and dirt removed prior to application. We recommend ULTRITE_® DEGREASER from W. R. MEADOWS for cleaning.

New Concrete: SEAL CURE-309-25 should be applied when surface water has completely disappeared and the concrete surface will not be marred by walking workmen.

Application Method … Use a sprayer, such as a Chapin 19049, or short-nap roller to apply a uniform film. Avoid puddling in low areas. If puddles occur, brush or roll them out. A standard industrial-grade sprayer, equipped with a neoprene hose and gaskets, as well as a Chapin 6-5797 spray nozzle (or equivalent) is recommended for best results.

For optimum performance, apply first coat at 600 ft.²/gal. After the first coat has thoroughly dried, apply a second coat at 600 ft.²/gal. NOTE: The second coat should be applied at a right angle.

Surface temperature of the concrete must be between 50° – 90° F (10° – 32° C).

Drying Time … SEAL CURE-309-25 dries quickly. Drying times may be extended depending on application rate, temperature, humidity, and project conditions. Restrict foot traffic for at least four hours. Twelve hours is preferable.

Cleanup … Application equipment should be cleaned promptly after use with xylene or toluene.

PRECAUTIONS
DO NOT DILUTE. FOR EXTERIOR APPLICATION ONLY. Surfaces treated with SEAL CURE-309-25 may become slippery under certain conditions.

SEAL CURE-309-25 should not be applied during high temperature conditions in direct sunlight. These conditions cause rapid evaporation, which does not allow the film to form properly. Under these conditions, the film may peel, bubble, and/or turn white (blush). SEAL CURE-309-25 should not be applied to concrete containing excessive moisture. Entrapped moisture in a solvent-based sealer may cause the film to peel and/or turn white (blush).

SEAL CURE-309-25 is a membrane-forming sealer. All membrane-forming sealers may darken concrete or magnify imperfections caused by variations in the porosity and/or finishing of the concrete.

SEAL CURE-309-25 may be used on colored concrete, but mottling may occur. Do not use on dense or non-porous surfaces, i.e. brick, stone, etc. Concrete containing calcium chloride will remain dark longer when treated with SEAL CURE-309-25. Concrete floors properly cured with SEAL CURE-309-25 meet section 8.9 “Adhesion of Tile Cements” of ASTM C 1315. For other specifications, secure the approval of the paint or resilient flooring manufacturer before applying SEAL CURE-309-25. ASTM C 1315, Class B products may discolor under certain conditions. The specifier and user shall determine the suitability of product for specific applications and assume all responsibility in connection therewith.

HEALTH AND SAFETY
Prolonged inhalation of vapors in excess of permissible exposure limits may result in symptoms of transient central nervous system depression. Direct contact with the product may result in irritation of the skin and eyes. Product vapors may also cause irritation. SEAL CURE-309-25 is combustible. Remove ignition sources prior to use. Empty containers may hold combustible vapors. Handle empty containers as combustible liquids. In the event of a spill, contain the product; apply absorbents and place in sealed containers. In the event of a fire, contain all run-off water. Refer to Material Safety Data Sheet for complete health and safety information.

LEED INFORMATION
May help contribute to LEED credits:

• MR Credit 2: Construction Waste Management
• MR Credit 5: Regional Materials

This material last updated January 2013.
