Pool Deck Drains - DECK-O-DRAIN Concrete Deck Drainage System

PRODUCT DATA: DECK-O-DRAIN - #789 Products 13 11 00 PDF Print Version Guide Specification LEED Credit Chart

DESCRIPTION

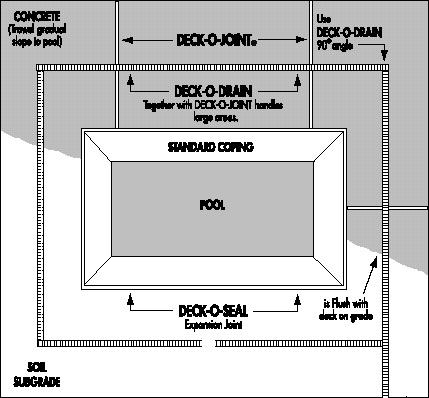

DECK-O-DRAIN drainage system provides an effective drainage system for concrete pool decks. Wherever specified, the system effectively collects and carries water away quickly from pool decks and other patio areas.  Made of tough, long lasting PVC, the DECK-O-DRAIN system resists wear and is non-corrosive. Both the deck and subgrade receive watertight protection.

The unique non-directional design of DECK-O-DRAIN eliminates the need for right or left fittings. One attachment can be used for both by simply facing it in the direction needed. A flat contour profile allows a tight fit against any wall.

DECK-O-DRAIN drainage system installs easily. There are no trenches to dig or deep excavations to make. DECK-O-DRAIN can be used as a screed rail in final flatwork preparation.

USES
The product is ideal for use on pool decks, driveways, patios, etc. – anywhere water collects and needs to be carried away.

COLORS
Signature Series Redwood – Wood Grain Appearance.

Standard DECK-O-DRAIN is available in Desert Tan, Stone Gray, and Dura-White. (Black and Redwood are available by special order.)

FEATURES/BENEFITS

• Combined joint and drainage system with waterstop feature provides watertight, secure protection to concrete decks and subgrade.
• Eliminates digging trenches or making deep excavations ... saves time, labor, and money.
• Need for right or left fittings is eliminated … one attachment can be used for both, simply by facing it in the desired direction.
• A flat contour profile allows tight fit against any wall.
• Non-corrosive, tough, long-lasting PVC construction resists wear ... flexible enough to offer an effective expansion and contraction joint system.
• Can be used as a screed rail in final flatwork preparation.
• New configuration provides center channel for better flow, thicker wall dimensions, and a cutting ledge on the inside for top replacement.

PACKAGING
1 1/2" (38.1 mm) wide x 3 1/4" (82.55 mm) high x 10' (3.05 m) long

DECK-O-DRAIN is packaged 100’ (30.48 m) per carton, including nailing clips, couplers, and protective tape over drain surface. NOTE: Nail clips should be placed on every other stake.  Packaging includes 20 nail clips per box and nine couplers per carton.

APPLICATION
DECK-O-DRAIN installation is quick and easy.

STEP ONE - Grade sub-soil, sloping it toward drain location.

STEP TWO - Along planned path for drain, drive short, 3.5" (88.9 mm) wide stakes into the ground. Space them 30” (76.2 mm) apart. Use two (2) nailing clips for each 10’ (3.05 m) section.

STEP THREE - Attach snap-on nailing clips and place drain over the stakes. Use couplers to ensure a straight, even line.

STEP FOUR - After carefully aligning, nail firmly to stakes.

STEP FIVE - Insert adapter. Can be hooked to 1.5” (38.1 mm) or 2" (50.8 mm) PVC pipe. Pipe can be adapted to any direction.

STEP SIX - Place concrete and trowel gradual slope to DECK-O-DRAIN.

STEP SEVEN - After concrete has set, install end plug, remove protective tape, and drain is ready to carry water away.

PRODUCT ACCESSORIES
DECK-O-DRAIN accessories are available for simplified job installation and can be viewed on our website.

LEED INFORMATION
May help contribute to LEED credits:

• IEQ Credit 3.1: Construction Indoor Air Quality Management Plan: During Construction
• MR Credit 2: Construction Waste Management
• MR Credit 4: Recycled Content
• MR Credit 5: Regional Materials
• SS Credit 6.1: Stormwater Design – Quantity Control
• SS Credit 6.2: Stormwater Design – Quality Control

Material last updated May 2011.

A DIVISION OF W.R. MEADOWS®
P.O. BOX 397 HAMPSHIRE, IL 60140 PHONE: 800-542-POOL (7665) FAX: 847-214-2268
