MEL-ROL® XLT

Rolled, Self-Adhering, Extra-Low Temperature Waterproofing Membrane

DESCRIPTION
MEL-ROL XLT is a flexible, versatile, dependable, roll-type waterproofing membrane ideal for application in extra-low temperatures down to 0º F (-18º C). It is composed of a nominally 56 mil thick layer of polymeric waterproofing membrane on a heavy-duty, 4 mil thick, cross-laminated polyethylene carrier film. The two components are laminated together under strict quality-controlled production procedures. A handy overlap guideline is printed 2 1 /2” (63.5 mm) in from the material edge on each side to assure proper overlap coverage and to assist in maintaining a straight application. Special, exposed polymeric membrane strips are provided on both sides for positive membrane-to-membrane adhesion in the overlap area. The membrane strips are protected by a pull-off release strip. All components of the MEL-ROL waterproofing system work together to provide a cost-effective, positive waterproofing system that’s quick and easy to apply. W. R. MEADOWS accessory products included in the MEL-ROL waterproofing system are: MEL-ROL Liquid Detail Membrane, MEL-PRIME™ primers (solvent-base, solvent-base VOC and/or water base), POINTING MASTIC, DETAIL STRIP, CATALYTIC BONDING ASPHALT, TERMINATION BAR, PROTECTION COURSE and MEL-DRAIN™ drainage board.

USES
MEL-ROL XLT provides a cost-effective answer to properly waterproof foundations, vertical walls and below-grade floors in residential and commercial construction. It is equally effective for use as between-the-slab waterproofing on plaza decks, parking decks and structural slabs. Use it as a waterproofing membrane to isolate mechanical and electronic rooms, laboratories, kitchens and bathrooms. MEL-ROL XLT offers positive protection when “wrapped around” major rapid transit, vehicular, utility and pedestrian tunnel projects. Installation of PROTECTION COURSE from W. R. MEADOWS is recommended before backfilling. It can also be used with drainage boards when specified.

FEATURES/BENEFITS

• Superior adhesion, even down to 0º F (-18º C).
• Offers a quick and easy-to-apply system for maximum productivity.
• Special membrane-to-membrane adhesion provides additional overlap security.
• Meets or exceeds the test requirements of all currently applicable specifications.
• Components work together for positive waterproofing protection
• Handles with ease on the jobsite.
• The product will help meet and maintain the maximum slab moisture transfer rate of 3 lbs./1000 sq. ft./24 hours required by the flooring industry’s specifications.
• MEL-ROL is available in two other grades, dependant on application temperature. See MEL-ROL data sheet #714 and MEL-ROL LOW TEMP data sheet #714-C.

PACKAGING
38.5” (.98 m) wide x 60’ (18.29 m) long; one roll per carton.
COVERAGE
Provides 180 square feet (17.88 square meters) per roll.

STORAGE AND HANDLING
Store membrane cartons on pallets and cover if left outside. Keep materials away from sparks and flames. Store where temperature will not exceed 90° F (32° C) for extended periods of time.

SPECIFICATIONS
A.R.E.M.A. Specifications Chapter 29, Waterproofing

MEL-ROL XLT COMBINES POSITIVE WATERPROOFING PROTECTION WITH EASE OF HANDLING

EXCLUSIVE FEATURES
A handy overlap guideline is printed 2 1 /2” (63.5 mm) in from the material edge on each side, assuring proper overlap coverage and assisting in maintaining a straight application. The polymeric waterproofing membrane is protected by a special, easy-to-remove release paper ... the exposed membrane strips on the material edges are protected by a pull-off release strip. Exposed polymeric membrane strips are provided on both sides of MEL-ROL XLT for positive membrane-to-membrane adhesion in the overlap area ... note the detail, as shown in inset photo.

MEL-ROL XLT is Quick and Easy To Apply

Application Tools

Knife

Roller

Caulking Gun

Manual Sprayer

Paint Roller

APPLICATION
SURFACE PREPARATION ... Concrete should be cured at least 72 hours, be clean, dry, frost-free, smooth, and free of voids. Repair spalled areas; fill all voids and remove all sharp protrusions.

*TEMPERATURE ... Apply in dry, fair weather when the air and surface temperatures are above 0° F (-18° C). Do not apply to frost covered concrete.

PRIME ... Prior to application, prime all surfaces to be covered in one working day with applicable MEL-PRIME primer. Uncovered, primed surfaces must be re-primed the next day. Follow all instructions and precautions shown on primer containers.

REMOVE release paper from MEL-ROL from the top edge of the roll and firmly press exposed area to the wall. Remove the release paper from the rolls in a downward direction, pressing MEL-ROL into place on the wall.

FOOTING DETAILS ... Use DETAIL STRIP for impaction sheet coverage. First, fold strips lengthwise and then cut at the fold. Material is then ready to install as 4 1 /2”(114.3 mm) strips on either side of the rebar. Any excess can be turned down on the face of the footing. Next, fill the voids around rebars in the keyway with CATALYTIC BONDING ASPHALT. Pour the walls. Install DETAIL STRIP horizontally along the wall where it meets the footing, placing half the material up the wall and the other half onto the footing. Extend the material 4 1 /2” (114.3 mm) beyond outside corners. Slit extended portion of DETAIL STRIP lengthwise. Place the horizontal flap out onto the footing and bend the vertical flap around the wall (See Diagram A). Repeat this procedure in the opposite direction as shown in Diagram B.

HORIZONTAL APPLICATIONS ... Position the MEL-ROL XLT membrane from low to high points, so all laps will shed water. Stagger end laps and overlap all seams at least 2.5 inches (63.5 mm). Apply a double-thickness of the MEL-ROL XLT membrane over construction, control and expansion joints and over cracks greater than 1 /16” (1.59 mm) wide.

VERTICAL WALL APPLICATION ... Masonry walls must be parge-coated with a cementitious material before priming and applying MEL-ROL XLT. Apply vertically in lengths approximately 8’ (2.44 m) long over the top of the horizontal DETAIL STRIP at the footing. Overlap seams at least 2.5” (63.5 mm). Tightly butt edges of membrane and apply POINTING MASTIC in corner applications (see Diagram C). To the top terminations, apply POINTING MASTIC at least 1 /8” (3.18 mm) thick and 1” (25.4 mm) wide. As an option, TERMINATION BAR may be used to mechanically fasten the membrane. Masonry walls must be parge-coated with a cementitious material before applying MEL-ROL XLT.

HAND-RUB AND ROLL PRESS ... Once positioned, immediately hand-rub MEL-ROL XLT membrane firmly to the surface and then pressure roll the complete surface to assure positive adhesion.

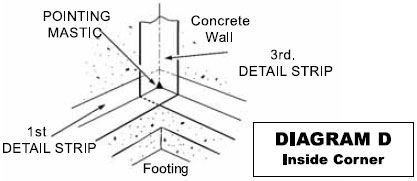

INSIDE CORNERS ... Before MEL-ROL XLT is applied, place a vertical DETAIL STRIP on inside corners extending the material 4 1 /2” (114.3 mm) beyond each side of the corner (See Diagram D). Terminate at the footing and finish the corner with POINTING MASTIC.

OUTSIDE CORNERS ... Bend DETAIL STRIP vertically over the outside corner and extend 4 1 /2” (114.3 mm) beyond each side of the corner. Terminate the material at the footing. Finish the corner with POINTING MASTIC. (See Diagram C.)

DRAINS AND PROTRUSIONS ... All protrusions should be sealed with two layers of membrane applied at least 6” (152.4 mm) in all directions. Seal all terminations with POINTING MASTIC. Around drains, apply two layers of MEL-ROL XLT membrane and put a bead of POINTING MASTIC between the membrane and clamping rings and at all terminations, drains and protrusions.

INSPECT AND REPAIR ... A thorough inspection should be made before covering and all necessary repairs made immediately. Tears and inadequate overlaps should be covered with MEL-ROL XLT membrane ... slit fishmouths and patch. Seal edges of all patches with POINTING MASTIC. Where applicable, horizontal applications can be flood-tested for 24 hours. All leaks should be marked and repaired when membrane dries.

PROTECT THE MEMBRANE ... on all vertical and horizontal installations with the immediate application of PROTECTION COURSE, if no drainage system is used, or MEL-DRAIN. (Refer to Data Sheet Nos. 712 and 719 for application instructions.) To secure PROTECTION COURSE, use POINTING MASTIC as an adhesive, and/or physically attach at the top edge using TERMINATION BAR. Backfilling should be done immediately using care and caution to avoid damaging the waterproofing application.

PRECAUTIONS
Avoid the use of products that contain tars, solvents, pitches, polysulfide polymers, or PVC materials that may come into contact with MEL-ROL XLT. The use of MEL-ROL XLT does not negate the need for relief of hydrostatic heads. A complete drain tile system should be placed around the exterior of footing and under slabs, as required. Read and follow application information, precautions and material safety data sheet.

ACCESSORIES
MEL-PRIME W/B PRIMER... Prepares concrete surfaces for MEL-ROL XLT membrane application. Arrives ready to use. Requires no additional mixing. MEL-PRIME W/B emits no unpleasant odors and works with all W. R. MEADOWS waterproofing membranes. Applied easily with manual sprayer or roller. VOC compliant. MEL-PRIME W/B is for use at temperatures of 40° F (4° C) and above.

Coverage: 250 to 350 sq.ft./gal. (6.14 to 8.59 sq.m/L) Packaging: 1 Gallon (3.79 Liter) Units (4 units per carton) and 5 Gallon (18.93 Liter) Pails

MEL-PRIME SOLVENT-BASE or VOC COMPLIANT SOLVENT-BASE PRIMERS... These primers are for use at temperatures of 0° F (-18° C) and above for maximum adhesion. Apply by roller.

Coverage: 250-350 sq.ft./gal. (6.14 to 8.59 sq.m/L) Packaging: 5 gallon (18.93 liter) Pails

MEL-ROL LIQUID MEMBRANE...A two-component material used as a flashing, to form fillets at corners and at protrusions. May be used as a substitute for POINTING MASTIC.

Coverage: As a fillet, approximately 135 lineal feet per gallon (10.87 meters per liter) Packaging: 1 gallon (3.79 Liter) units, 4 Units per carton.

POINTING MASTIC...Used as an adhesive and for sealing top edge terminations on DETAIL STRIP and membrane, and to adhere PROTECTION COURSE.

Coverage: 1/8" x 1" x 200 ft./gal. (3.18mm x 25.4mm x 16.10ml) Packaging: 5 Gallon (18.93 Liter) Pails or 29 Oz. (857.65ml) Cartridges, 12/ctn.

CATALYTIC BONDING ASPHALT...Easy-to-apply one-component material for sealing around rebar.

Coverage: 5 gal./1,000 sq.ft./gal. (4.9 sq.m/L) Packaging: 5 gallon (18.93 Liter) Pails

DETAIL STRIP... Convenient, easy-to-use DETAIL STRIP provides an economical and effective method for sealing vertical and horizontal butt joints, i.e. inside or outside corners and where walls and footings meet.

Packaging: 9" x 50' (.23 x 15.24m) roll, 4 rolls per carton.

PROTECTION COURSE (PC-2 and PC-3)...Use for vertical and horizontal applications. Adhere with Pointing Mastic or use mechanical fasteners.

PACKAGING: 4' x 8' (1.22 x 2.44m) panels

MEL-DRAIN...A dimple-raised molded polystyrene fabric designed to provide high flow capacity to reduce hydrostatic pressure build-up around waterproofing and vaporproofing membranes. Choice of drain-types available for vertical, horizontal and site applications.

TERMINATION BAR... A high strength, pre-formed, multi-purpose plastic strip designed to support vertical membrane systems and PROTECTION COURSE at their termination point.

PACKAGING: 10' (Holes every 6" o/c, 2" from either end), 25 pieces per carton.
