AIR-SHIELD SMP Sheet Membrane Vapor Permeable Air Barrier
Product Data Sheet – The following application details are available in PDF format.
Brick Veneer / Light Gauge Metal |
|
| LGMF BU ANGLED ROOF TIE-IN | DWG _ PDF |

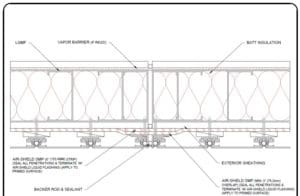

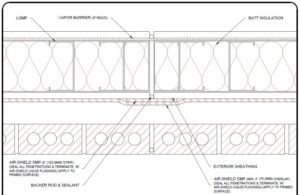

| LGMF BU CONTROL JOINT (METAL CLADDING) PLAN VIEW |
DWG _ PDF |
| LGMF BU CONTROL JOINT PLAN VIEW |
DWG _ PDF |

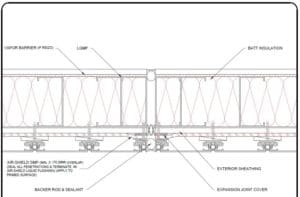

| LGMF BU EXPANSION JOINT (METAL CLADDING) PLAN VIEW |
DWG _ PDF |

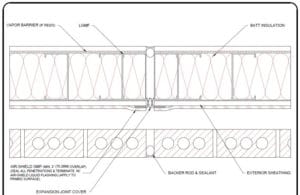

| LGMF BU EXPANSION JOINT PLAN VIEW |
DWG _ PDF |

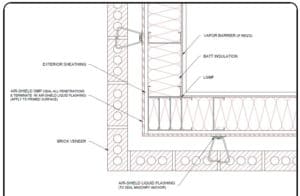

| LGMF BU EXTERNAL CORNER PLAN VIEW |
DWG _ PDF |

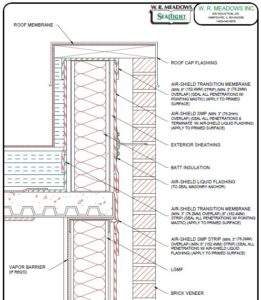

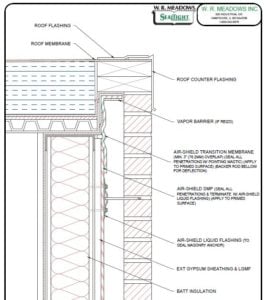

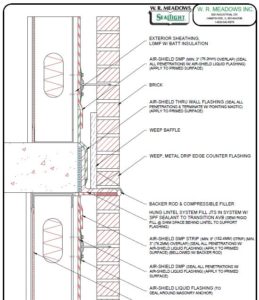

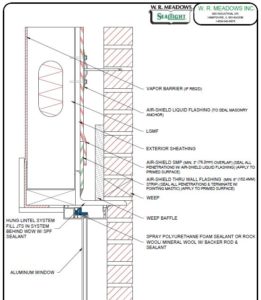

| LGMF BU FLAT ROOF TIE-IN | DWG _ PDF |
| LGMF BU HUNG LINTEL WINDOW HEAD | DWG _ PDF |

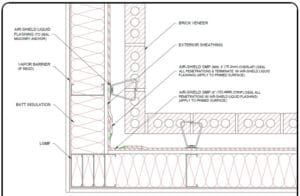

| LGMF BU INTERNAL CORNER PLAN VIEW |
DWG _ PDF |

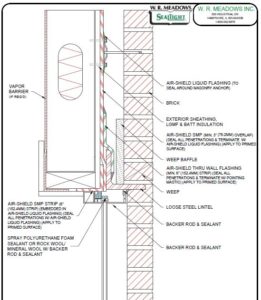

| LGMF BU LOOSE LINTEL WINDOW HEAD | DWG _ PDF |
| LGMF BU RELIEVING ANGLE | DWG _ PDF |

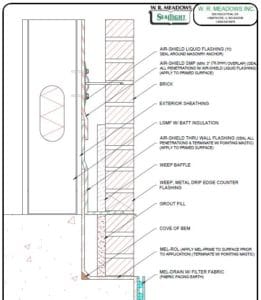

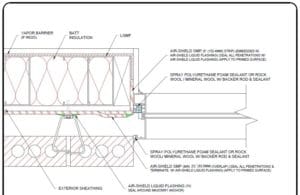

| LGMF BU WALL BASE WITH HIGH WEEP HOLE | DWG _ PDF |
| LGMF BU WALL BASE WITH LOW WEEP HOLE | DWG _ PDF |
| LGMF BU WINDOW JAMB PLAN VIEW |
DWG _ PDF |

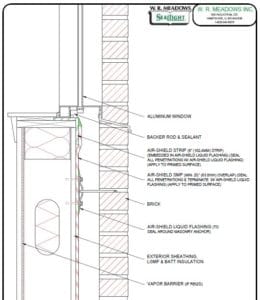

| LGMF BU WINDOW SILL | DWG _ PDF |
