PERMINATOR EVOH Details

Press Ctrl + F on your keyboard to search.

tech-support

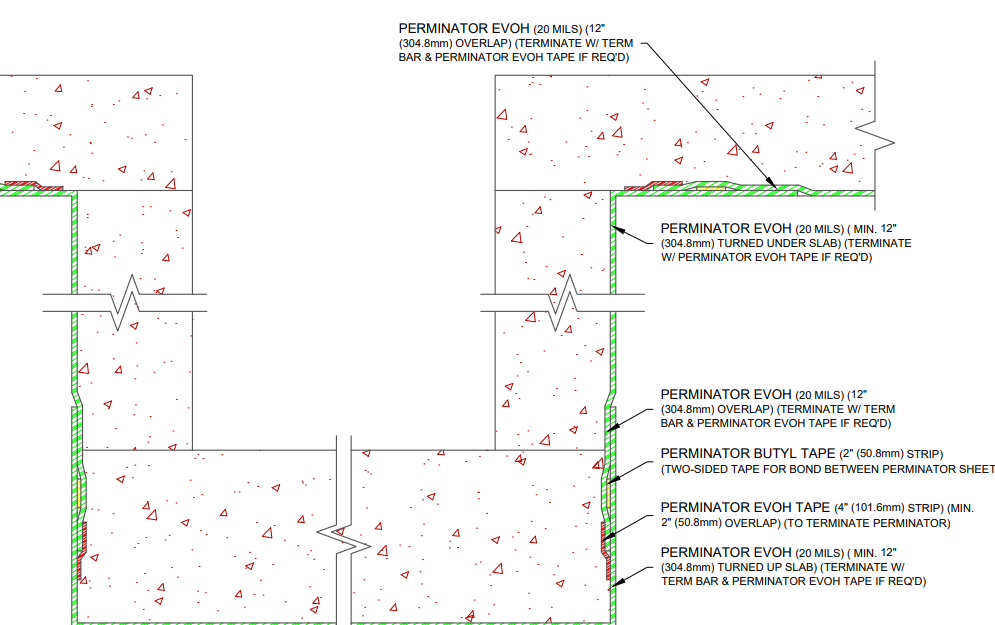

PERMINATOR EVOH BASE OF ELEVATOR PIT (FLUSH WALL TO SLAB)

Screenshot 2025-09-10 103140

PERMINATOR EVOH BASE OF ELEVATOR PIT

Screenshot 2025-09-10 103411

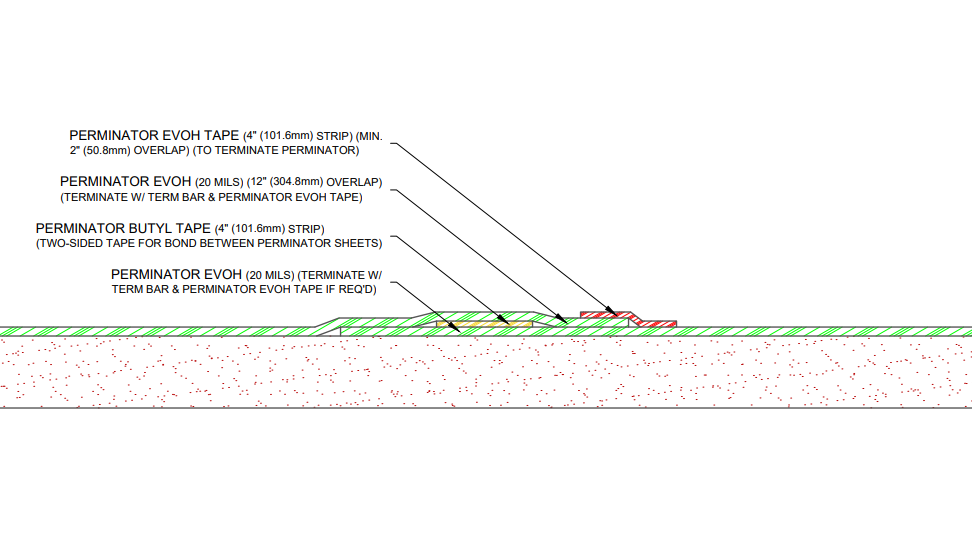

PERMINATOR EVOH END OF SHEET OVERLAP

Screenshot 2025-09-10 103532

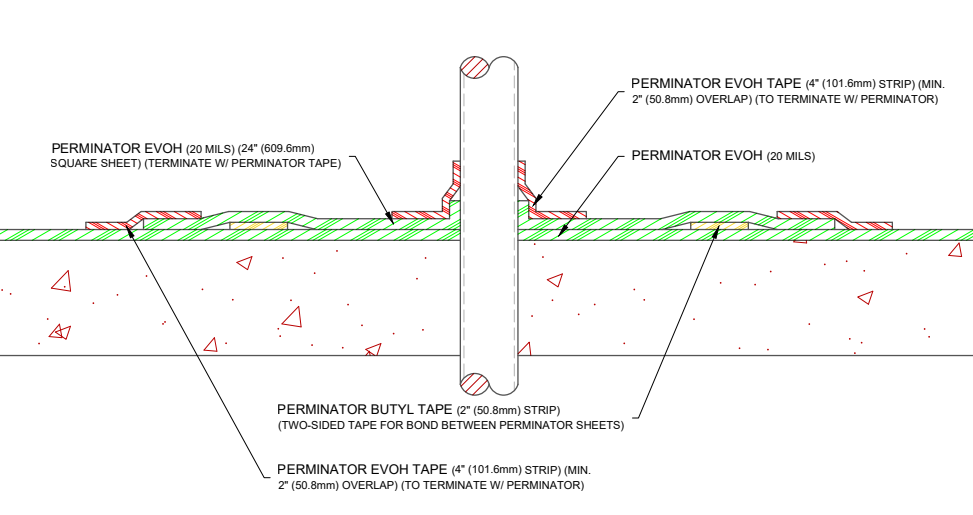

PERMINATOR EVOH HORIZONTAL PIPE PENETRATION

Screenshot 2025-09-10 103644

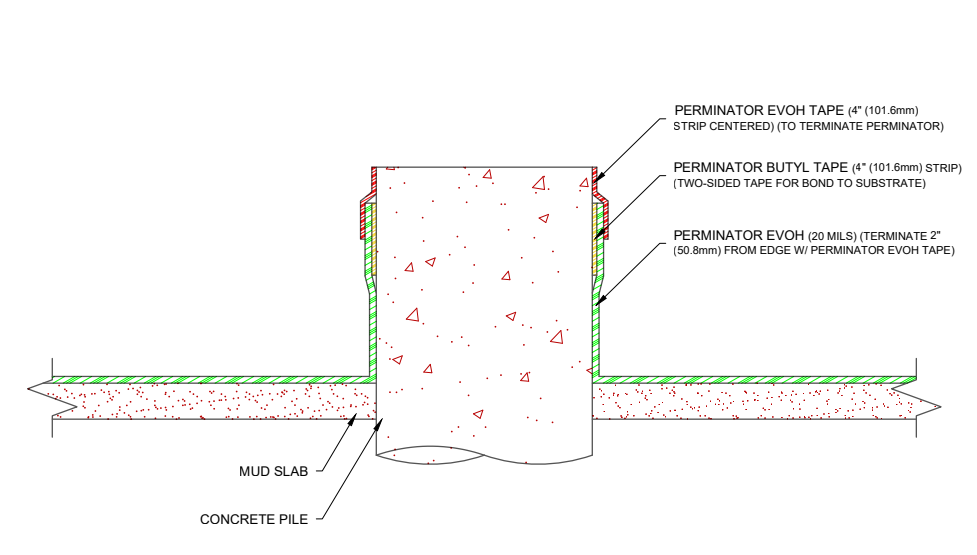

PERMINATOR EVOH TERMINATION @ PILE CAP

Screenshot 2025-09-10 103833

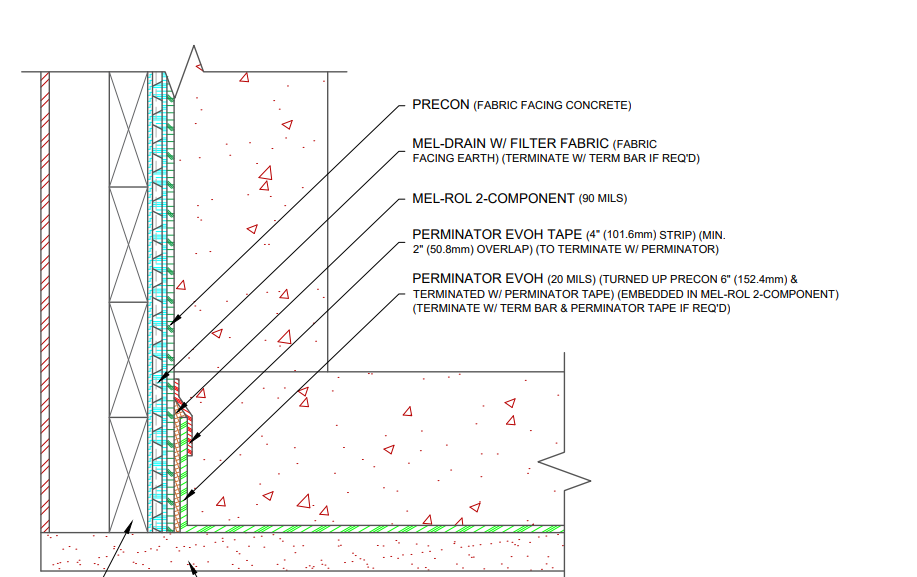

PERMINATOR EVOH TRANSITION TO PRECON @ BLINDSIDE WALL BASE

Screenshot 2025-09-10 103937

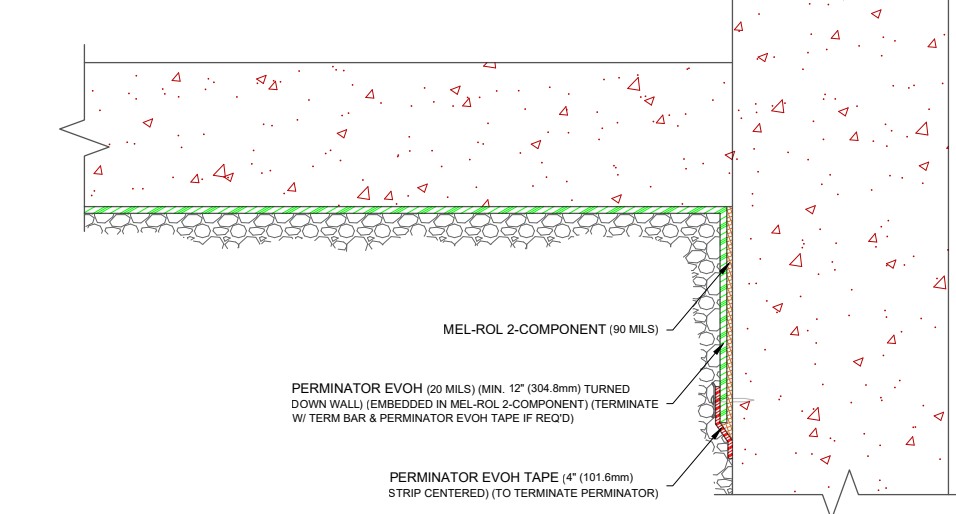

PERMINATOR EVOH UNDERSLAB TERMINATION (DOWN WALL)

Screenshot 2025-09-10 104139

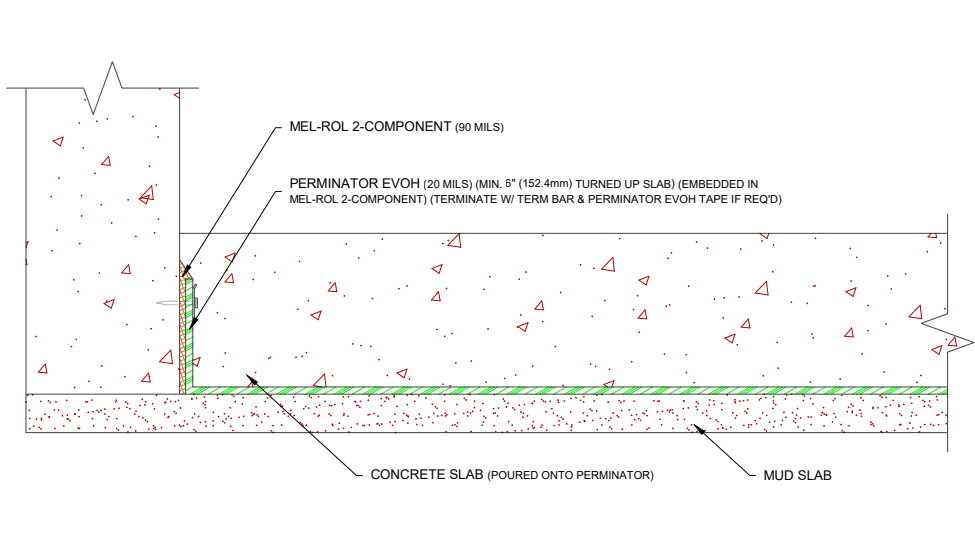

PERMINATOR EVOH UNDERSLAB TERMINATION

Screenshot 2025-09-10 104308
