REZI-WELD FLEX is a gray, two-part, pourable consistency, premium-grade, moisture-insensitive, epoxy joint filler formulation. When cured, it is semi-rigid, with a Shore D Hardness of 60.
Guide Specification
Product Data Sheet
| 03 15 00 |
|

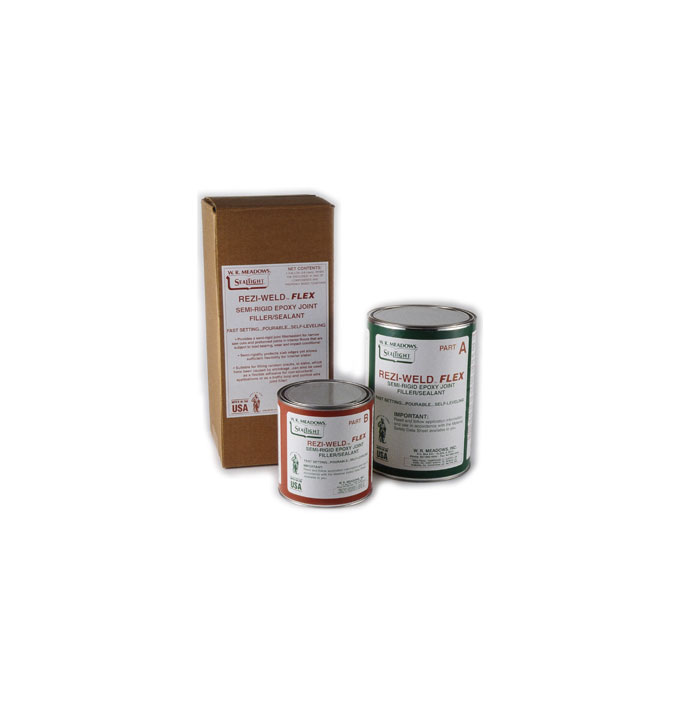

REZI-WELD™ FLEX
Semi-Rigid, Flexible Epoxy Joint Filler
DESCRIPTION
REZI-WELD FLEX is a gray, two-part, pourable consistency, premium-grade, moisture-insensitive, epoxy joint filler formulation. When cured, it is semi-rigid, with a Shore D Hardness of 60.
USES
REZI-WELD FLEX was developed for use as a joint filler for saw cuts and construction joints in interior concrete floors subject to load bearing, wear or impact conditions, such as warehouse and industrial plants.
These are floors that are typically subjected to hard-wheeled vehicles (such as forklifts). REZI-WELD FLEX is also suitable for filling or repairing random cracks in slabs or as an embedded control wire sealant.
FEATURES/BENEFITS
|
Packaging:
1 gallon (3.79 liter) Unit
10 gallon (37.85 liter) Units
Coverage: 231 cu. in (3785 cm³) per 1 gallon unit
Color (mixed):Gray
Shelf Life (Typical): 2 years (in unopened, undamaged container)
TECHNICAL DATA*
| Typical Physical Property | Test Method | ACI Report 302.1 | Typical Value |
| Solids % by weight Mix Ratio (A:B) Color (A & B mixed) Consistency Pot Life (1 gal. unit), minutes Thin film tack-free time, hours |
ASTM D 1259 by volume visual Appearance ASTM C 881 ASTM C 879 |
100% min. | 100% 1:1 Gray Pourable 20 3.5 |
| Tensile adhesion to concrete @ 3 days: 75º F (24º C), PSI |
ASTM D 5329 | 290 | |
| Hardness: Shore D (7 days) Shore A (7 days) |
ASTM D 2240 | 50, min. | 60 95 |
| Tensile strength: 75º F (24º C), (3 days), PSI 75º F (24º C), (7 days), PSI |
ASTM D 638 | 660 PSI 770 PSI |
|
| Elongation: 75º F (24º C), (3 days), % 75º F (24º C), (7 days), % |
ASTM D 638 | 6% min | 72% 53% |
| Water Absorption: 75º F (24º C) (24 hrs.), % by weight |
ASTM D 570 | 0.56% | |
| Shrinkage | ASTM D 2566 | Negligible |
| LINEAL FEET PER UNIT | |||
| Joint Depth | Joint Width | ||
1″ 1 1/4″ 1 1/2″ 1-3/4″ 2″ |
1/8″ 154 123 102 88 77 |
3/16″ 102 82 68 58 51 |
1/4″ 77 61 51 43 38 |
| LINEAL METERS PER UNIT | |||
| Joint Depth | Joint Width | ||
25 mm 32 mm 38 mm 44 mm 51 mm |
3mm 50 meters 39 meters 33 meters 29 meters 25 meters |
6mm 25 meters 20 meters 17 meters 14 meters 12 meters |
|
| LEED INFORMATION May help contribute to LEED credits: |
APPLICATION
Joint Preparation and Design…Joints must be level, clean, and free of frost and standing water. Remove curing compounds, form release agents, old sealant, and/or contaminants from joint faces by sandblasting or mechanical abrading. Blow any dust, dirt, and laitance out of the joint with oil-free compressed air prior to application. To prevent run out from cracks in the bottom of joints, apply a small amount of fine dry sand. Install full depth. Do not use with soft backer rod. Tape joint sides to allow for easy removal of overfill.
Joint frequency, width, and depth shall be as specified by the design engineer. It is suggested that the width of a typical saw cut shall be 1/4″ (6.4 mm) maximum. The suggested depth of the saw cut should be 25% of the slab thickness, but no less than 1″ (25.4 mm) in depth.
Mixing … Condition all components to 60-85º F for 24 hours prior to use. Pre-mix each component. Mechanically mix at slow speed (600-900 rpm) using a drill and Jiffy® Blade or drum mixer for three (3) minutes or until completely mixed while scraping the sides to ensure complete blending of components. The mixed product should be uniform gray in color and not show streaks. Avoid air entrapment. Mix only very small quantities by hand for a minimum of three (3) minutes or until sufficiently blended together using the supplied stirring stick. Scrape the sides of the container to ensure complete blending of components. Mix only the amount of epoxy that can be applied within the product’s pot life. Pot life will decrease as the ambient temperature and/or mass size increases.
Dispensing…Pour properly mixed product directly from can; dispense through a bulk caulking gun or positive displacement pump. Fill joint to top. If leakage occurs, reapply as necessary prior to product becoming tack-free.
Cleanup … Prior to curing, clean all tools and equipment with toluene or xylene. Spilled material must be collected with absorbent material and disposed of in accordance with local, state, and federal regulations. Remove solid material mechanically.
SAFETY AND TOXICITY
Avoid direct contact with this product. Both components may cause irritation as well as skin and respiratory sensitization. Component B is corrosive and may cause tissue destruction. In case of contact, immediately flush affected areas thoroughly with water for at least 15 minutes. Seek immediate medical attention. Unused epoxy will generate excessive heat, especially in large quantities. Unused epoxy should be mixed with dry sand in the container to help lower heat. Refer to Material Safety Data Sheet for complete health and safety information.
PRECAUTIONS
Do not use in vertical or sloping joints, or in areas subject to continuous water immersion. Do not use in joints designed for any significant movement (i.e. expansion or contraction joints). Do not apply when concrete temperature is below 40º F (4º C). This product is recommended for interior use only. It is not suitable for areas subject to sudden extreme temperature changes. Concrete must be a minimum of 28 days old, but for optimal results, allow the concrete to cure for a minimum of 56 days prior to installation. REZI-WELD FLEX may discolor during curing when applied in areas heated by artificial heaters, which generate carbon dioxide, or when exposed to certain UV lighting systems or sunlight.
This material last updated August 2009.
