AIR-SHIELD LSR LGMF Details for Metal Cladding Z-Girt Wall Assemblies

View and download AIR-SHIELD LSR LGMF construction details for insulated and non-insulated Z-girt wall assemblies.

Standard Wall Details

2 detail sets

AIR-SHIELD LSR LGMF standard wall detail with exterior metal cladding, Z-girt, and insulation

Standard Wall Insulation

Standard Wall — Z-Girt with Insulation

Standard wall assembly detail for exterior metal cladding with Z-girt and insulation.

Download DWG View PDF

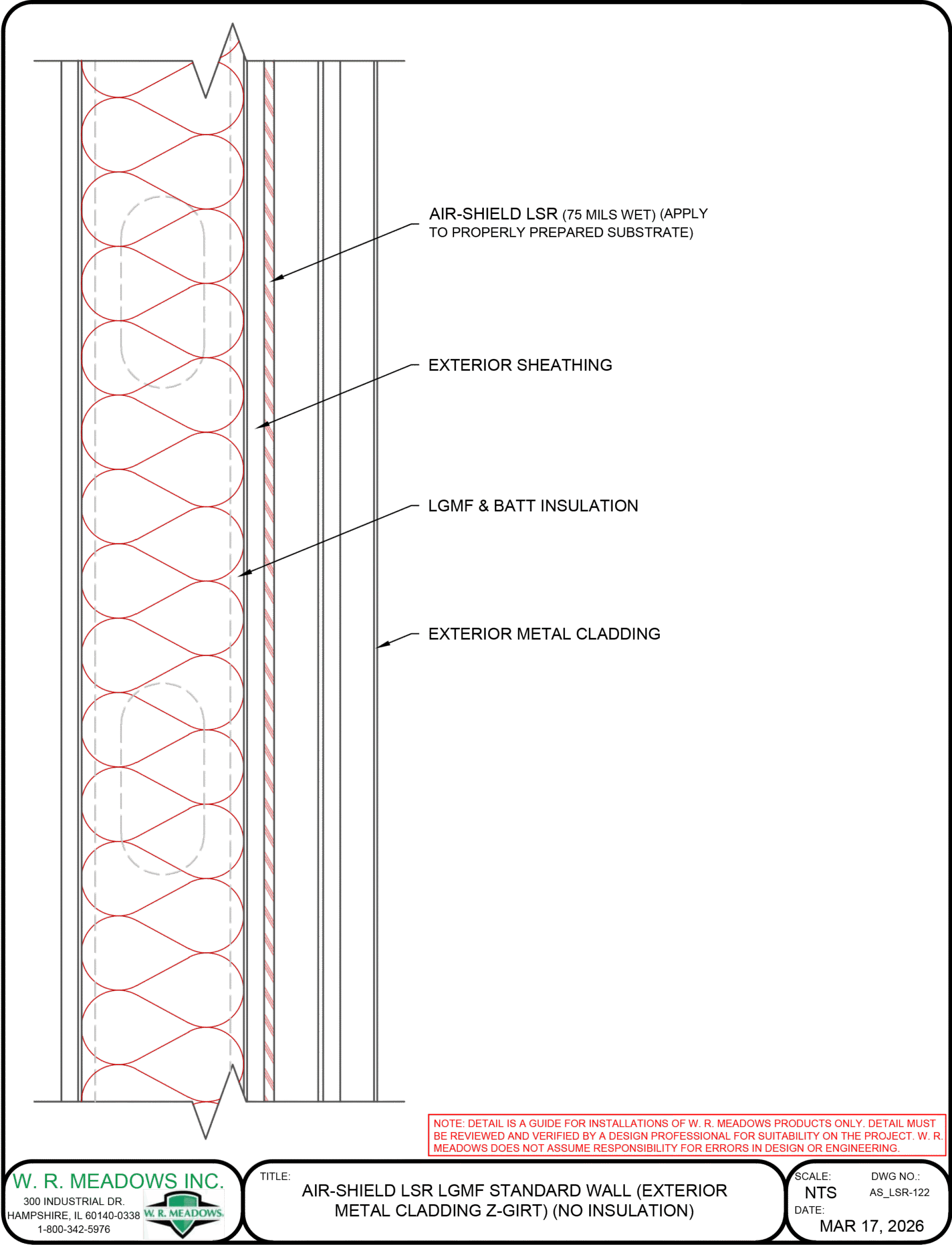

AIR-SHIELD LSR LGMF standard wall detail with exterior metal cladding, Z-girt, and no insulation

Standard Wall No Insulation

Standard Wall — Z-Girt, No Insulation

Standard wall assembly detail for exterior metal cladding with Z-girt and no insulation.

Download DWG View PDF

Control Joint and Expansion Joint Details

4 detail sets

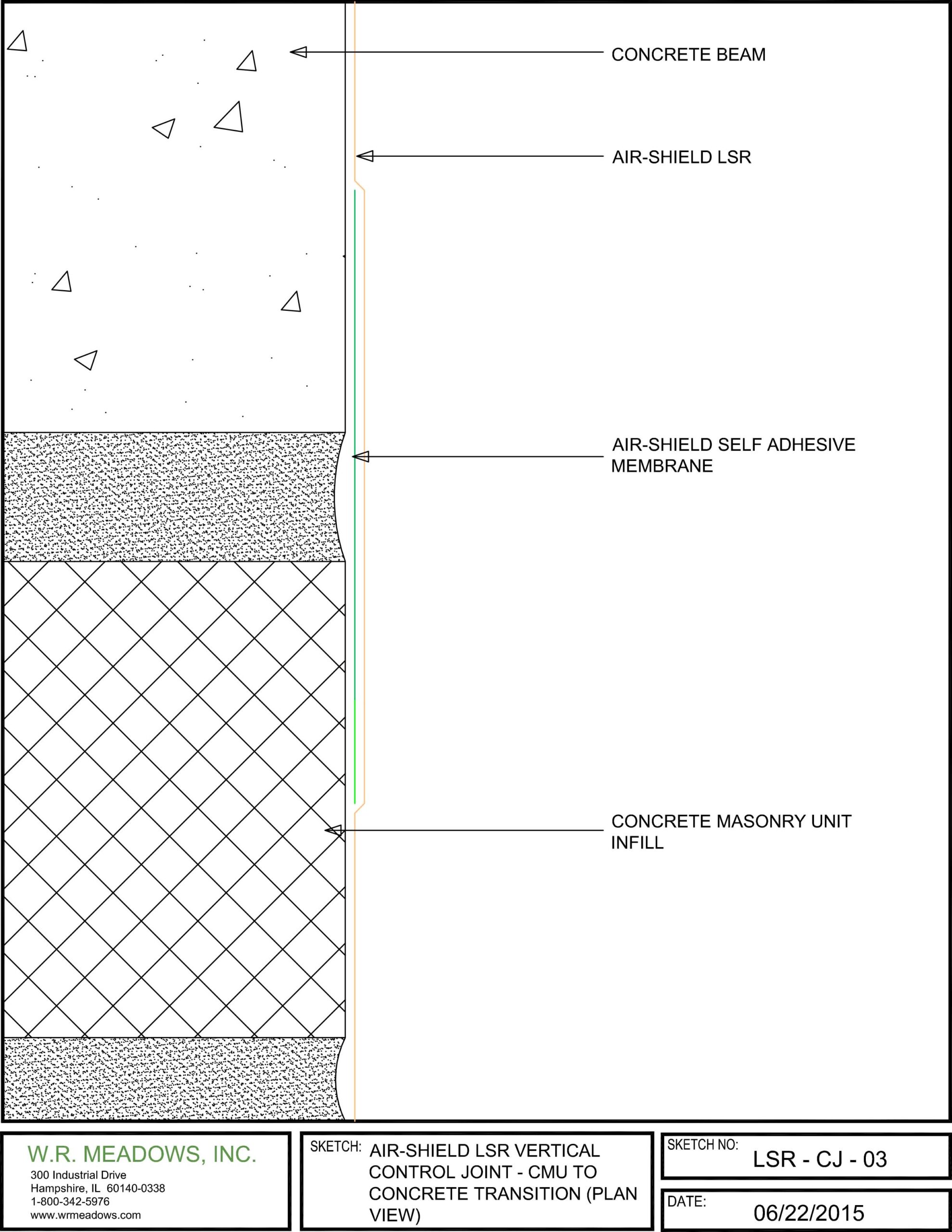

AIR-SHIELD LSR LGMF control joint detail with exterior metal cladding, Z-girt, and insulation

Control Joint Insulation

Control Joint — Z-Girt with Insulation

Control joint detail for exterior metal cladding with Z-girt and insulation.

Download DWG View PDF

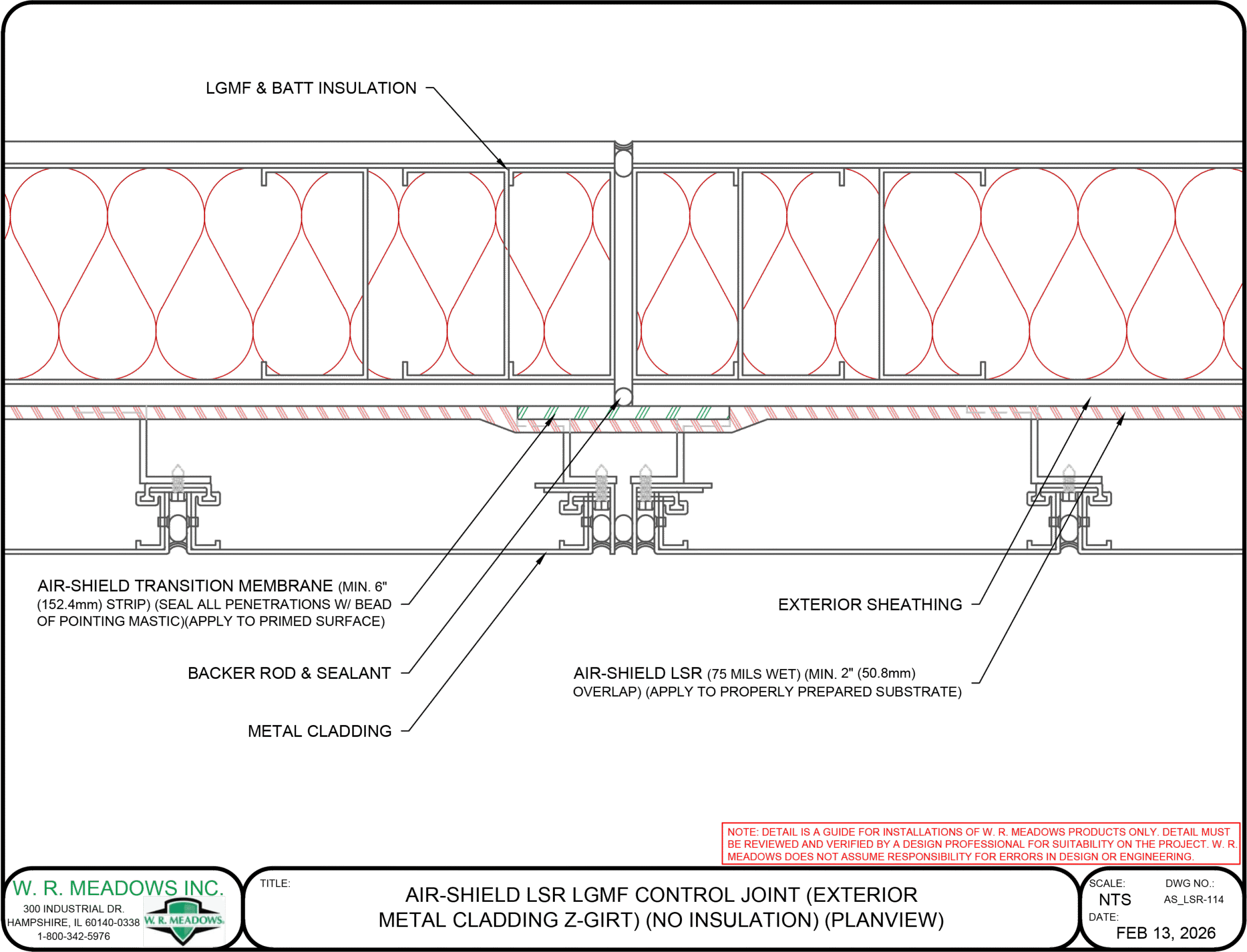

AIR-SHIELD LSR LGMF control joint detail with exterior metal cladding, Z-girt, and no insulation

Control Joint No Insulation

Control Joint — Z-Girt, No Insulation

Control joint detail for exterior metal cladding with Z-girt and no insulation.

Download DWG View PDF

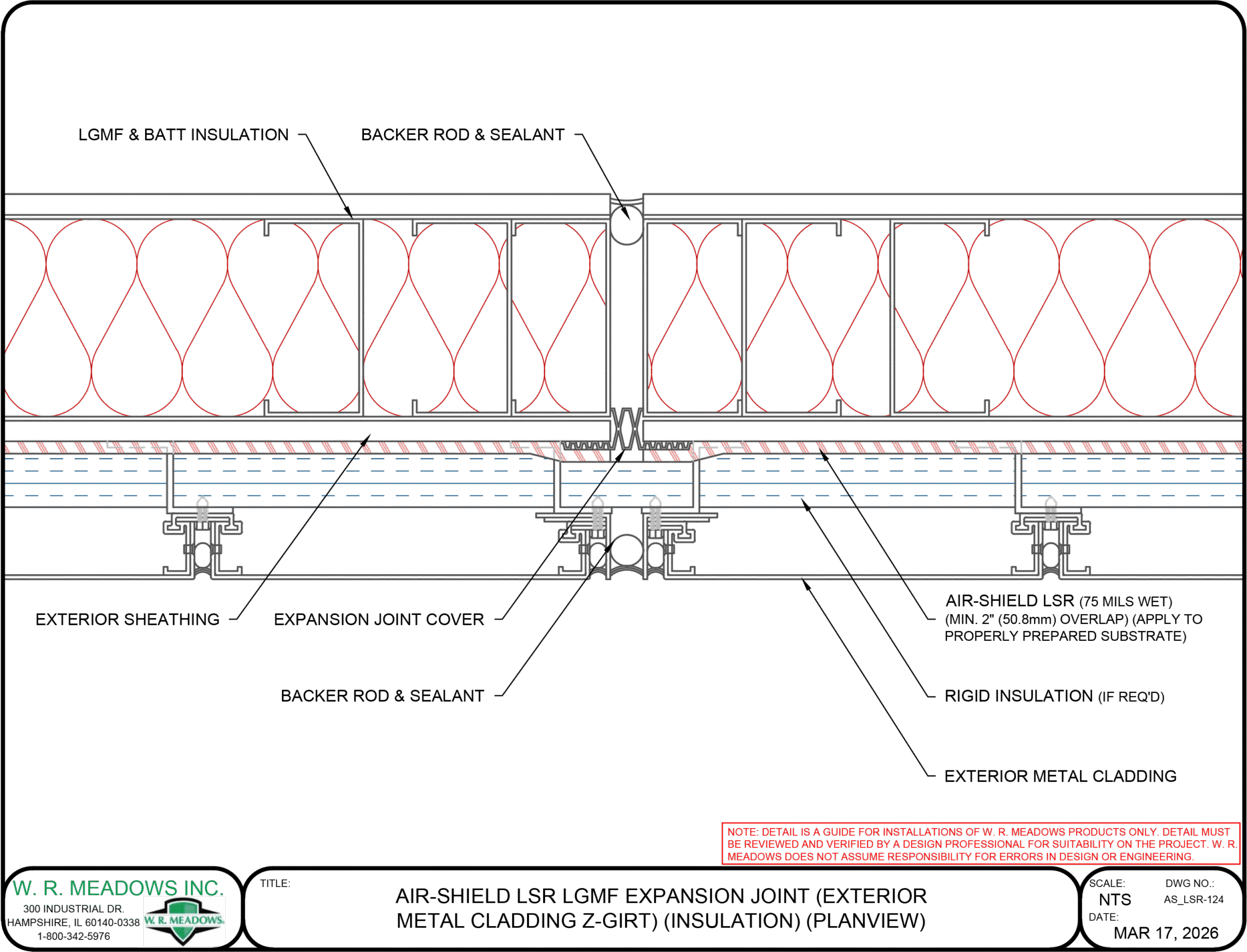

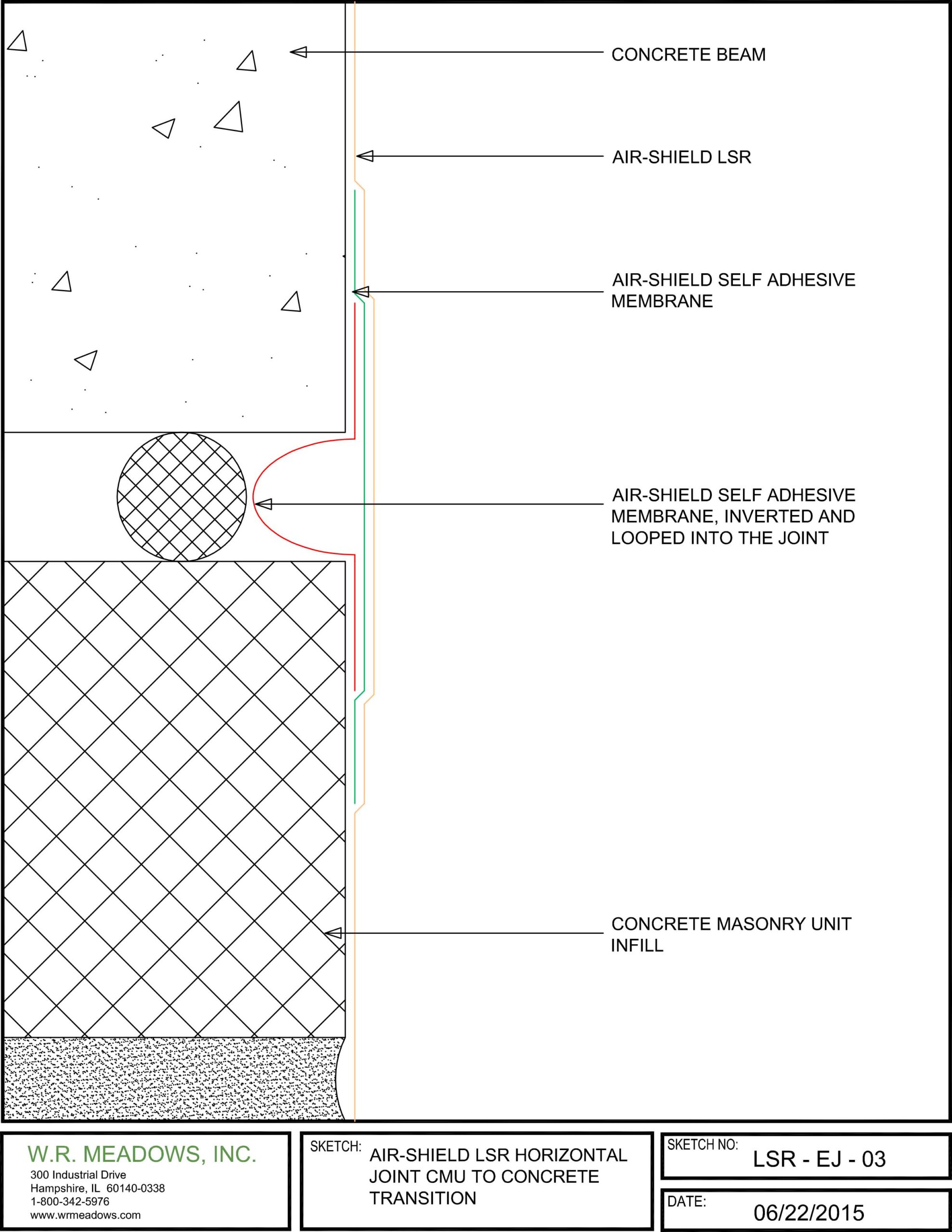

AIR-SHIELD LSR LGMF expansion joint detail with exterior metal cladding, Z-girt, and insulation

Expansion Joint Insulation

Expansion Joint — Z-Girt with Insulation

Expansion joint detail for exterior metal cladding with Z-girt and insulation.

Download DWG View PDF

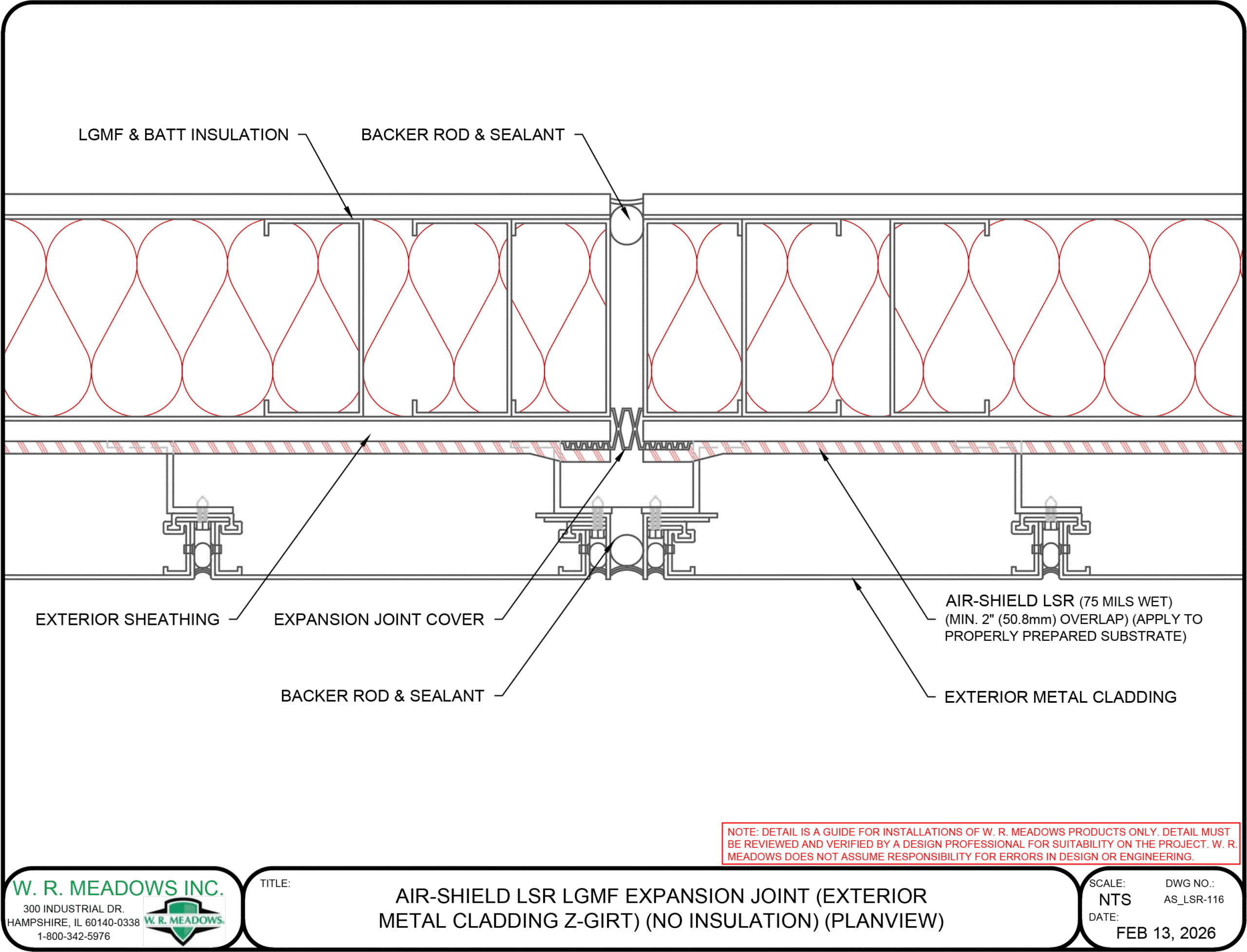

AIR-SHIELD LSR LGMF expansion joint detail with exterior metal cladding, Z-girt, and no insulation

Expansion Joint No Insulation

Expansion Joint — Z-Girt, No Insulation

Expansion joint detail for exterior metal cladding with Z-girt and no insulation.

Download DWG View PDF

Corner Details

4 detail sets

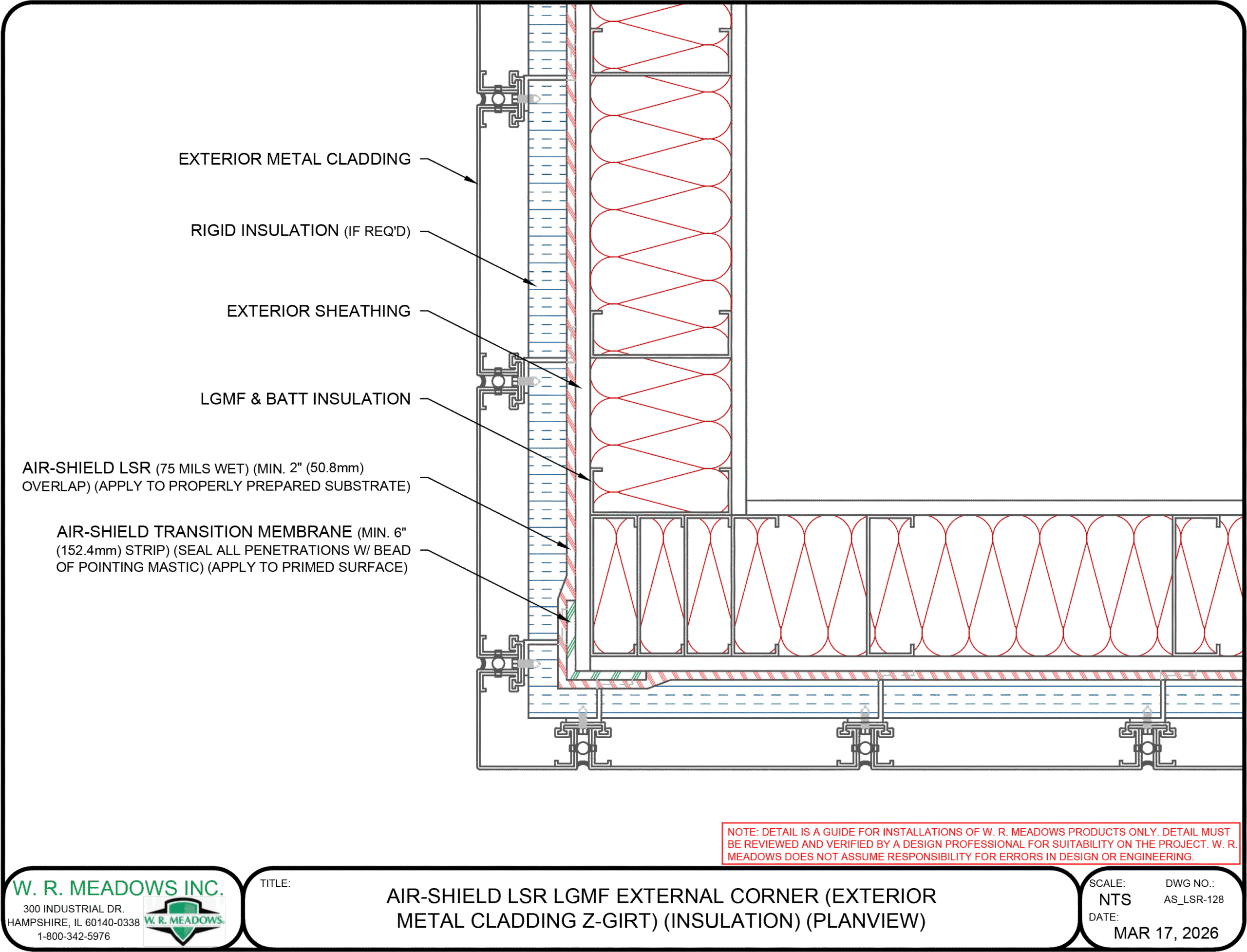

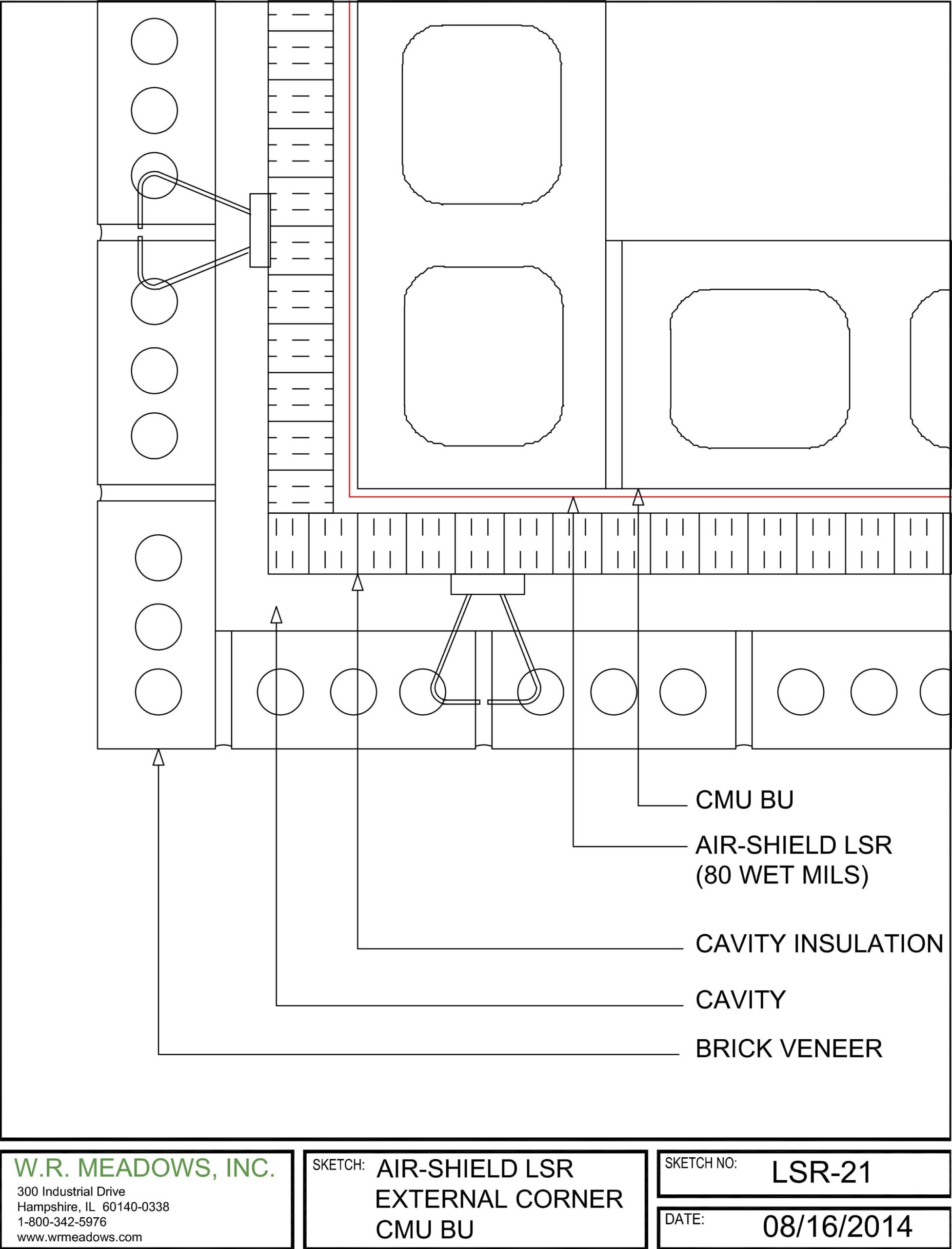

AIR-SHIELD LSR LGMF external corner detail with exterior metal cladding, Z-girt, and insulation

External Corner Insulation

External Corner — Z-Girt with Insulation

External corner detail for exterior metal cladding with Z-girt and insulation.

Download DWG View PDF

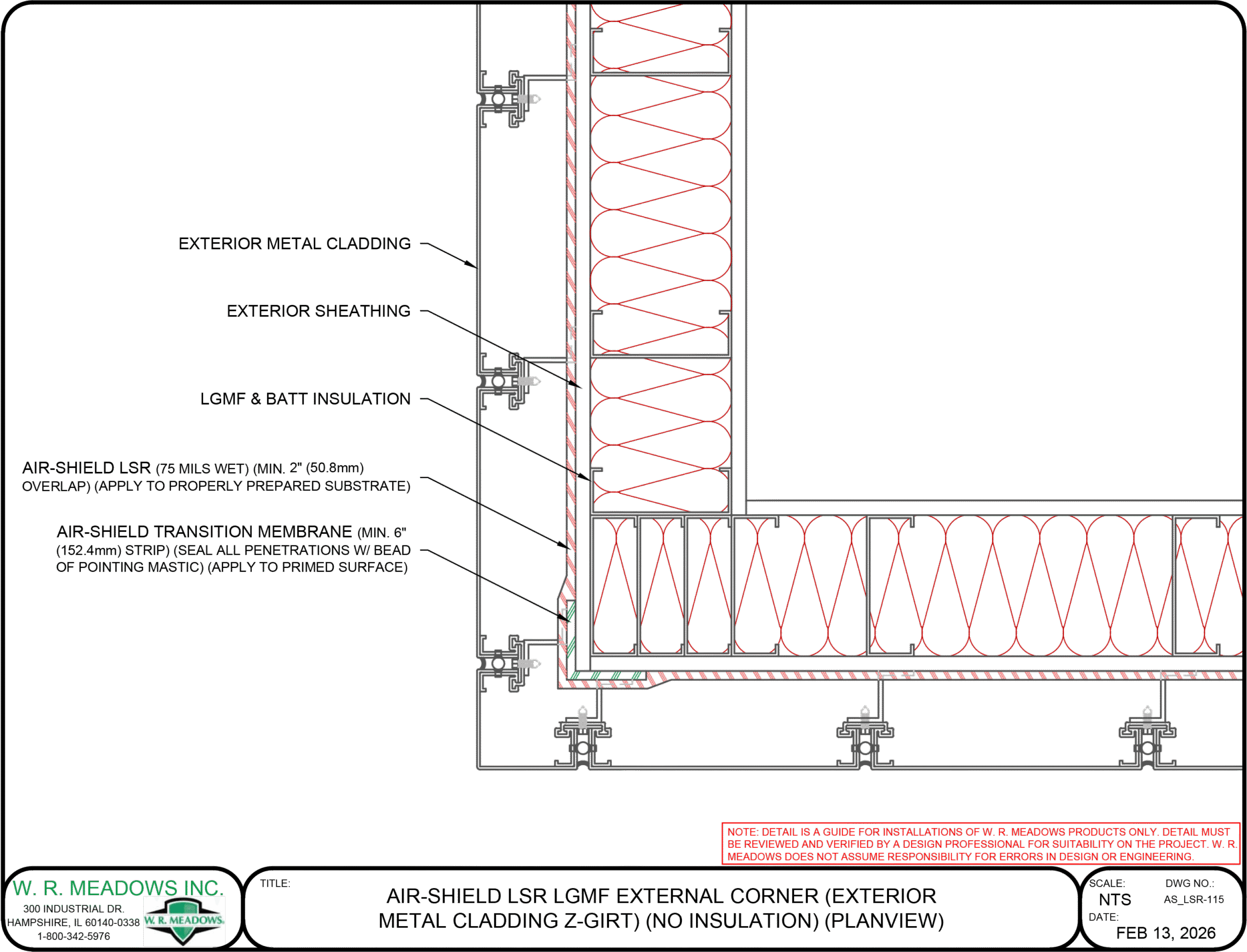

AIR-SHIELD LSR LGMF external corner detail with exterior metal cladding, Z-girt, and no insulation

External Corner No Insulation

External Corner — Z-Girt, No Insulation

External corner detail for exterior metal cladding with Z-girt and no insulation.

Download DWG View PDF

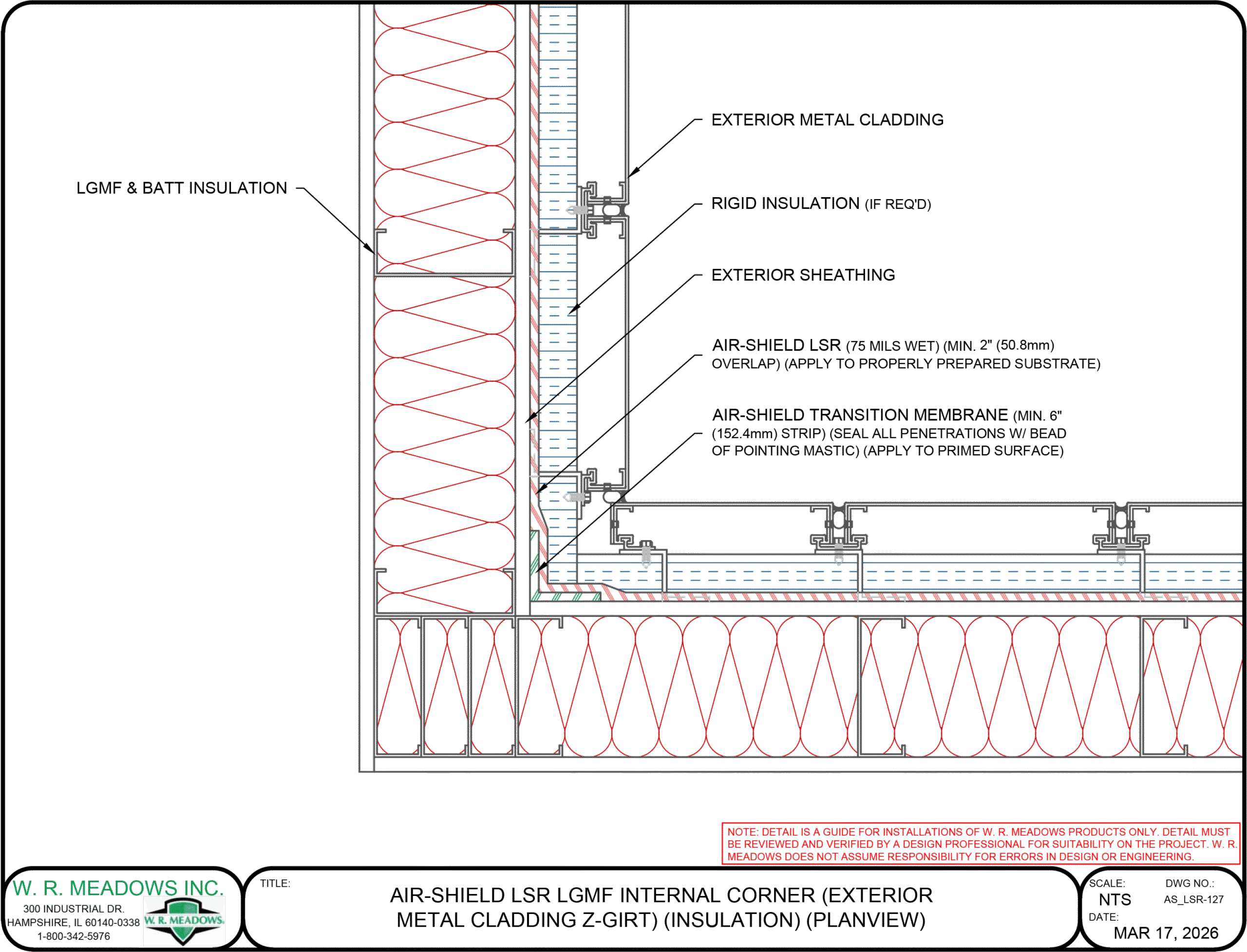

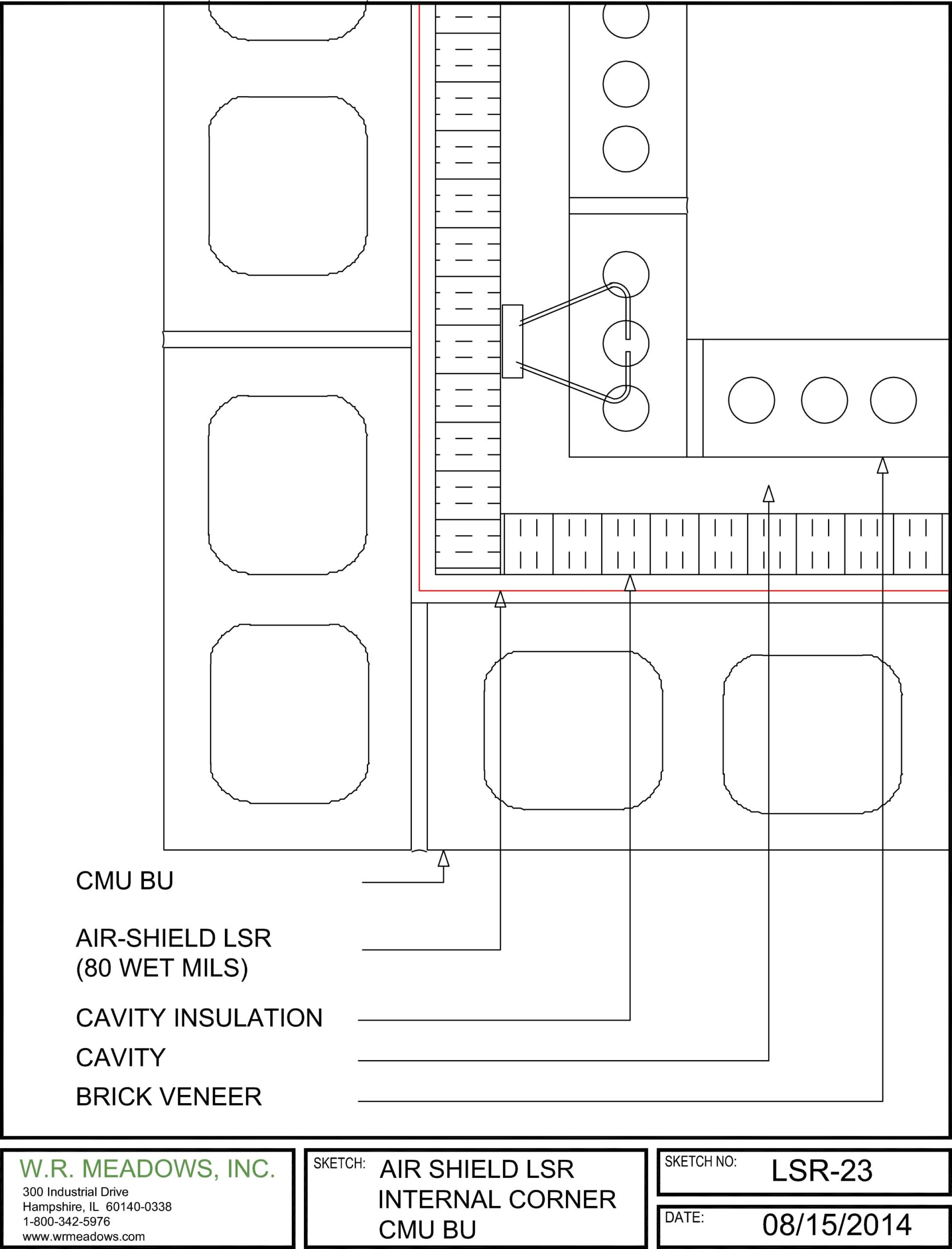

AIR-SHIELD LSR LGMF internal corner detail with exterior metal cladding, Z-girt, and insulation

Internal Corner Insulation

Internal Corner — Z-Girt with Insulation

Internal corner detail for exterior metal cladding with Z-girt and insulation.

Download DWG View PDF

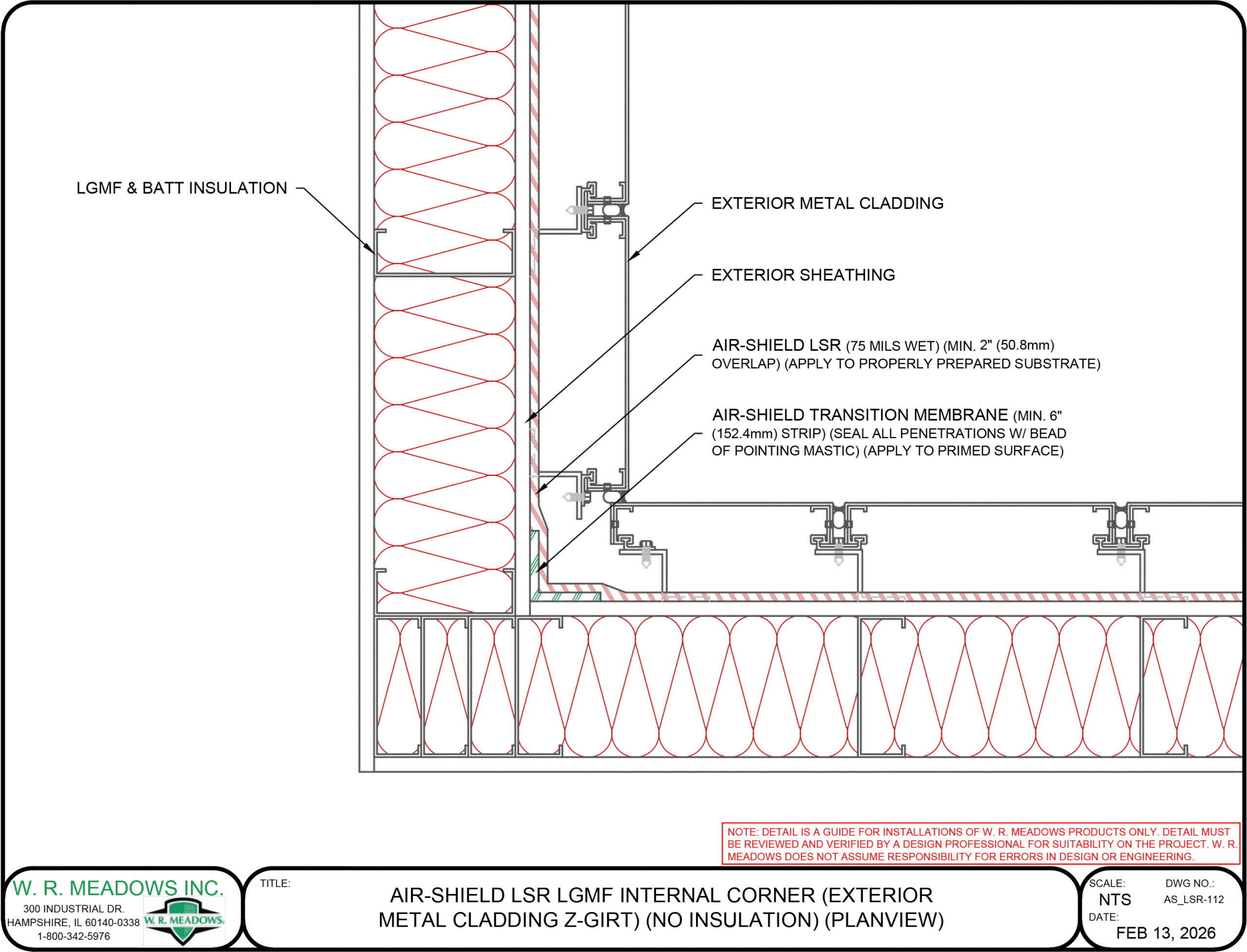

AIR-SHIELD LSR LGMF internal corner detail with exterior metal cladding, Z-girt, and no insulation

Internal Corner No Insulation

Internal Corner — Z-Girt, No Insulation

Internal corner detail for exterior metal cladding with Z-girt and no insulation.

Download DWG View PDF

Window Opening Details

6 detail sets

AIR-SHIELD LSR LGMF window head detail with exterior metal cladding, Z-girt, and insulation

Window Head Insulation

Window Head — Z-Girt with Insulation

Window head detail for exterior metal cladding with Z-girt and insulation.

Download DWG View PDF

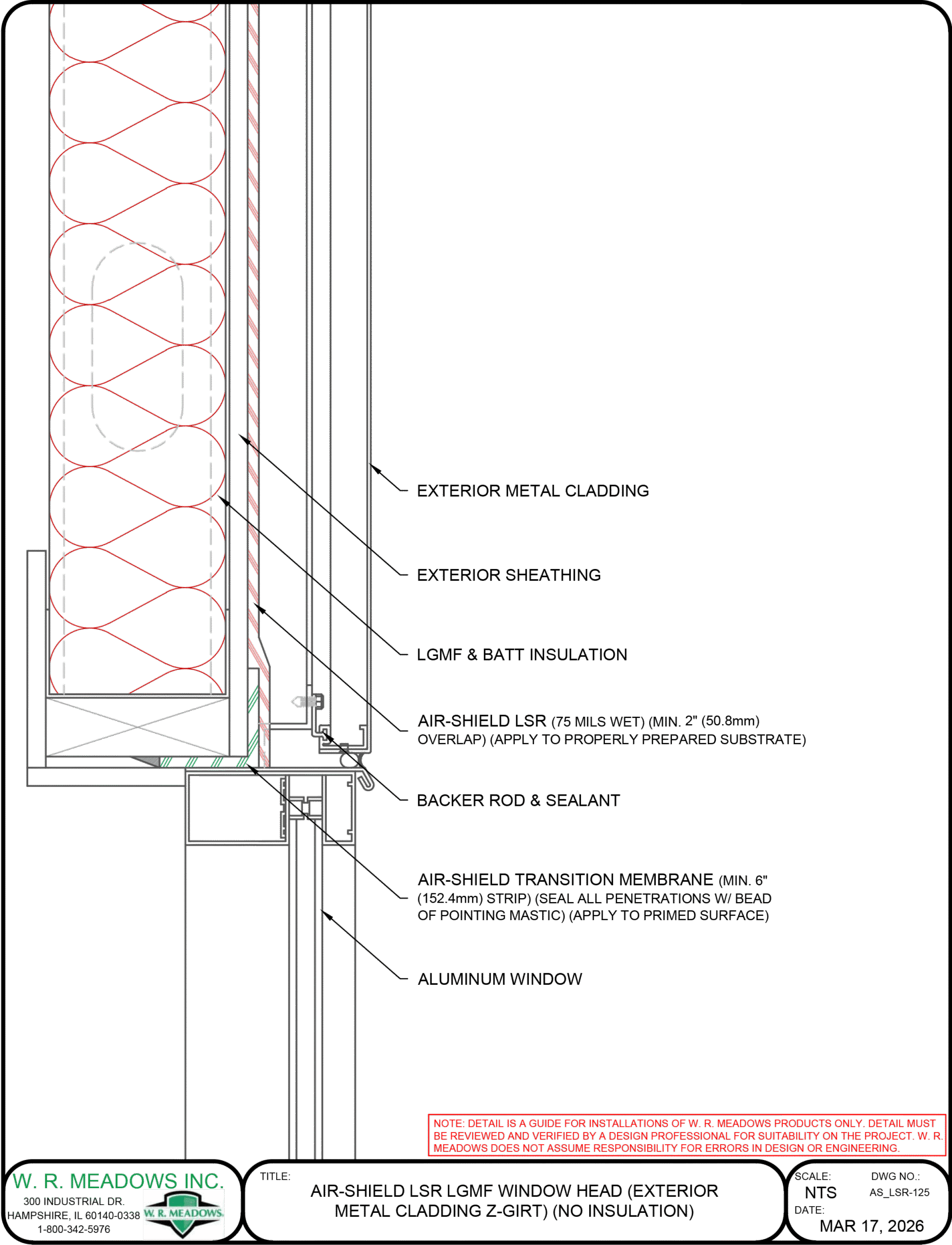

AIR-SHIELD LSR LGMF window head detail with exterior metal cladding, Z-girt, and no insulation

Window Head No Insulation

Window Head — Z-Girt, No Insulation

Window head detail for exterior metal cladding with Z-girt and no insulation.

Download DWG View PDF

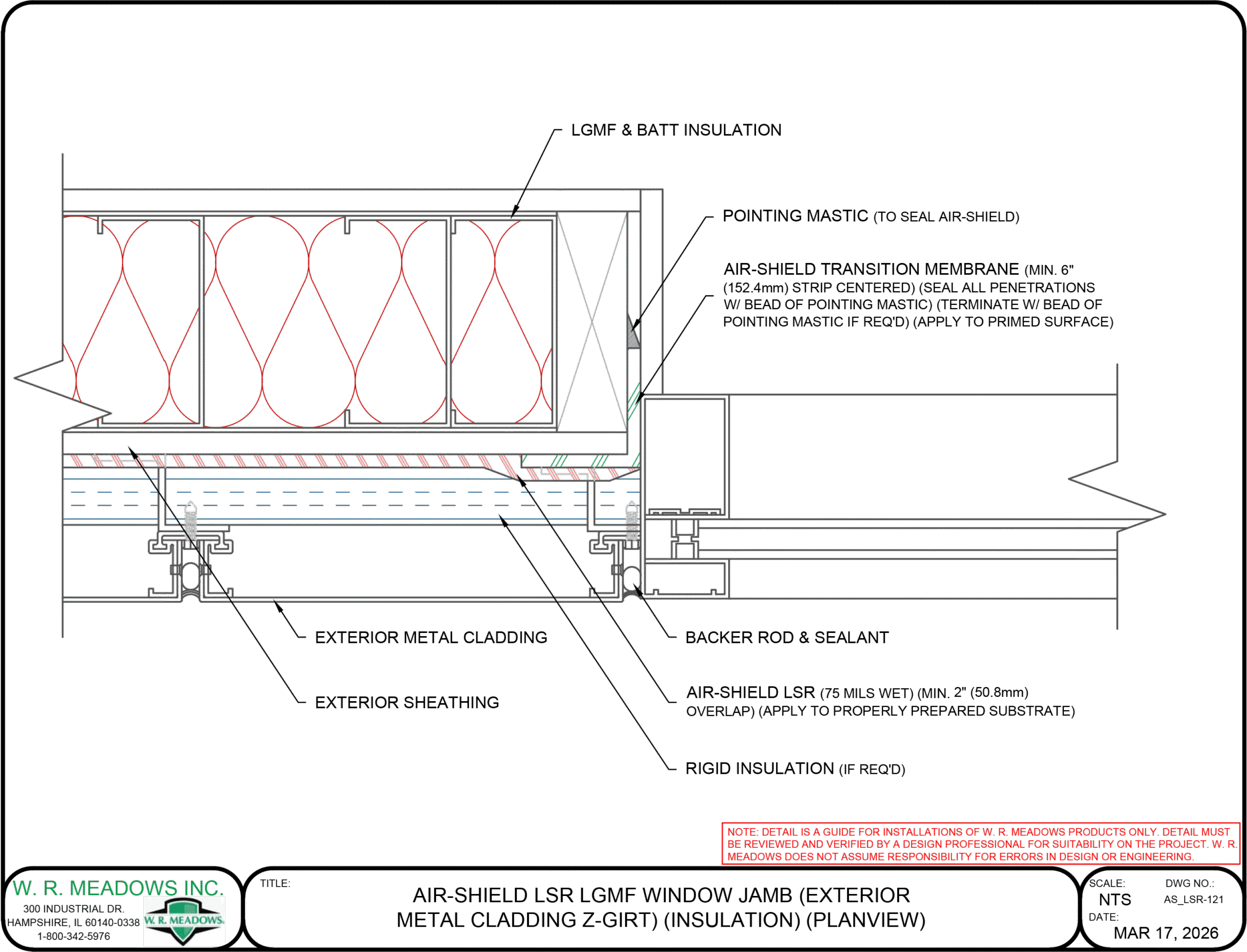

AIR-SHIELD LSR LGMF window jamb detail with exterior metal cladding, Z-girt, and insulation

Window Jamb Insulation

Window Jamb — Z-Girt with Insulation

Window jamb detail for exterior metal cladding with Z-girt and insulation.

Download DWG View PDF

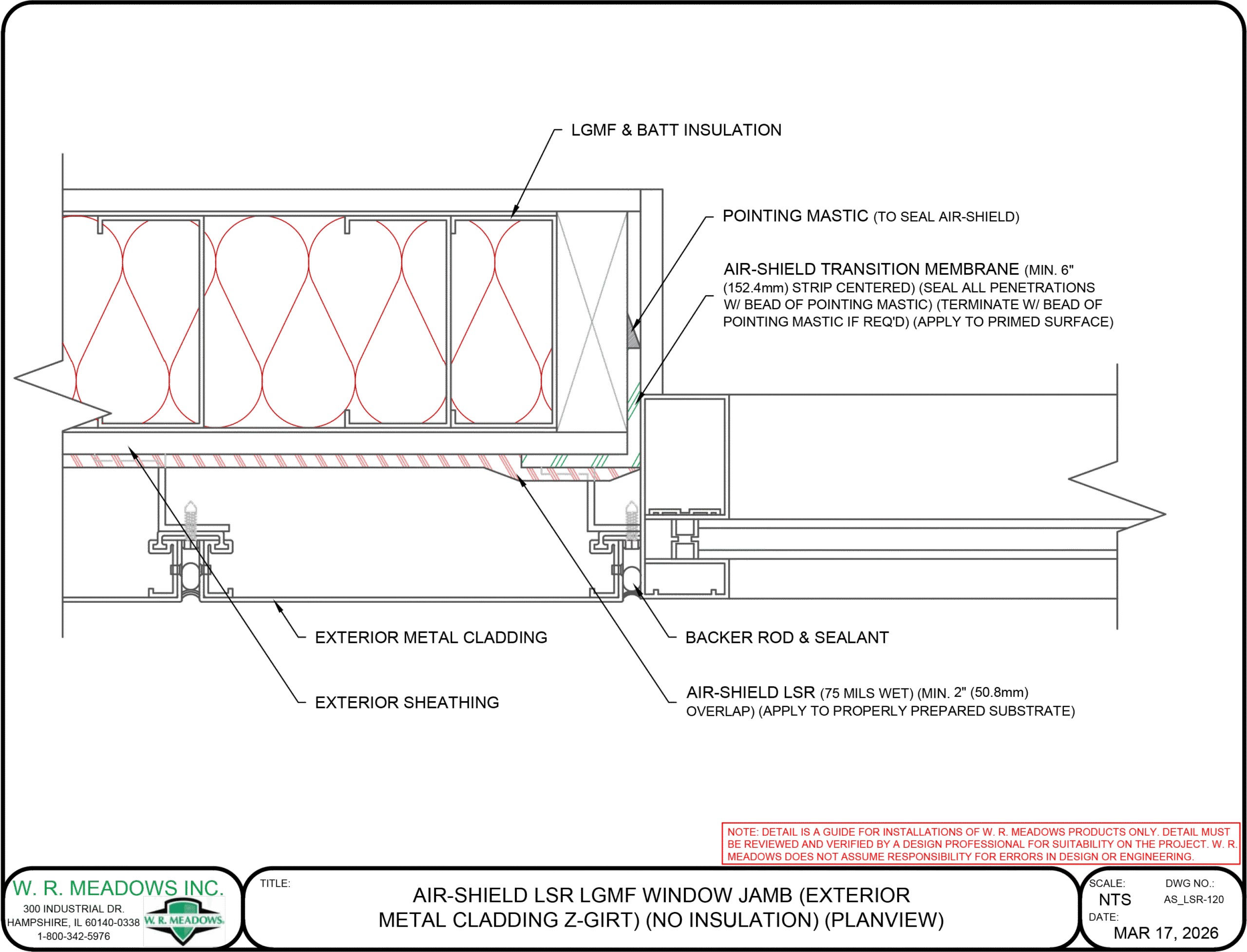

AIR-SHIELD LSR LGMF window jamb detail with exterior metal cladding, Z-girt, and no insulation

Window Jamb No Insulation

Window Jamb — Z-Girt, No Insulation

Window jamb detail for exterior metal cladding with Z-girt and no insulation.

Download DWG View PDF

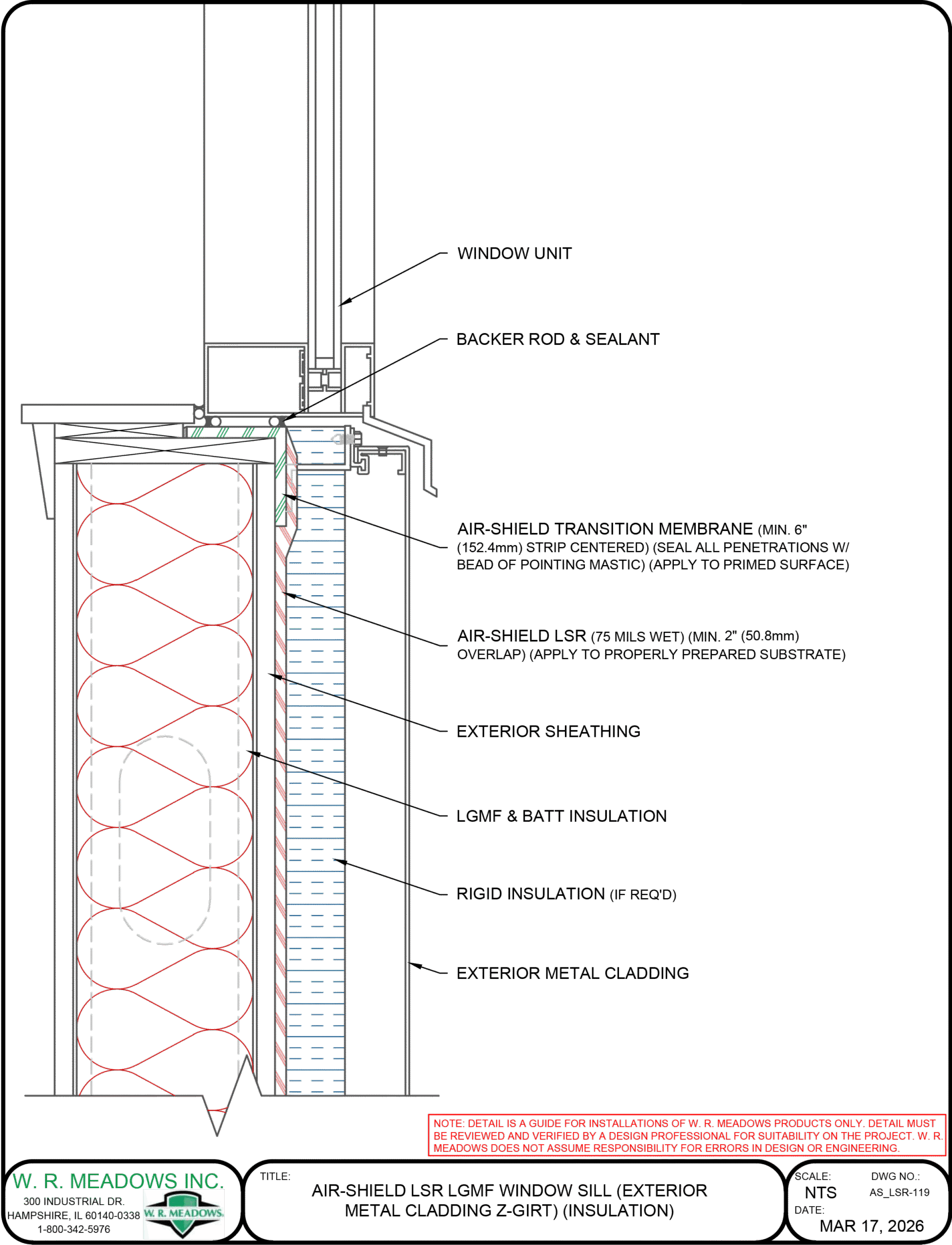

AIR-SHIELD LSR LGMF window sill detail with exterior metal cladding, Z-girt, and insulation

Window Sill Insulation

Window Sill — Z-Girt with Insulation

Window sill detail for exterior metal cladding with Z-girt and insulation.

Download DWG View PDF

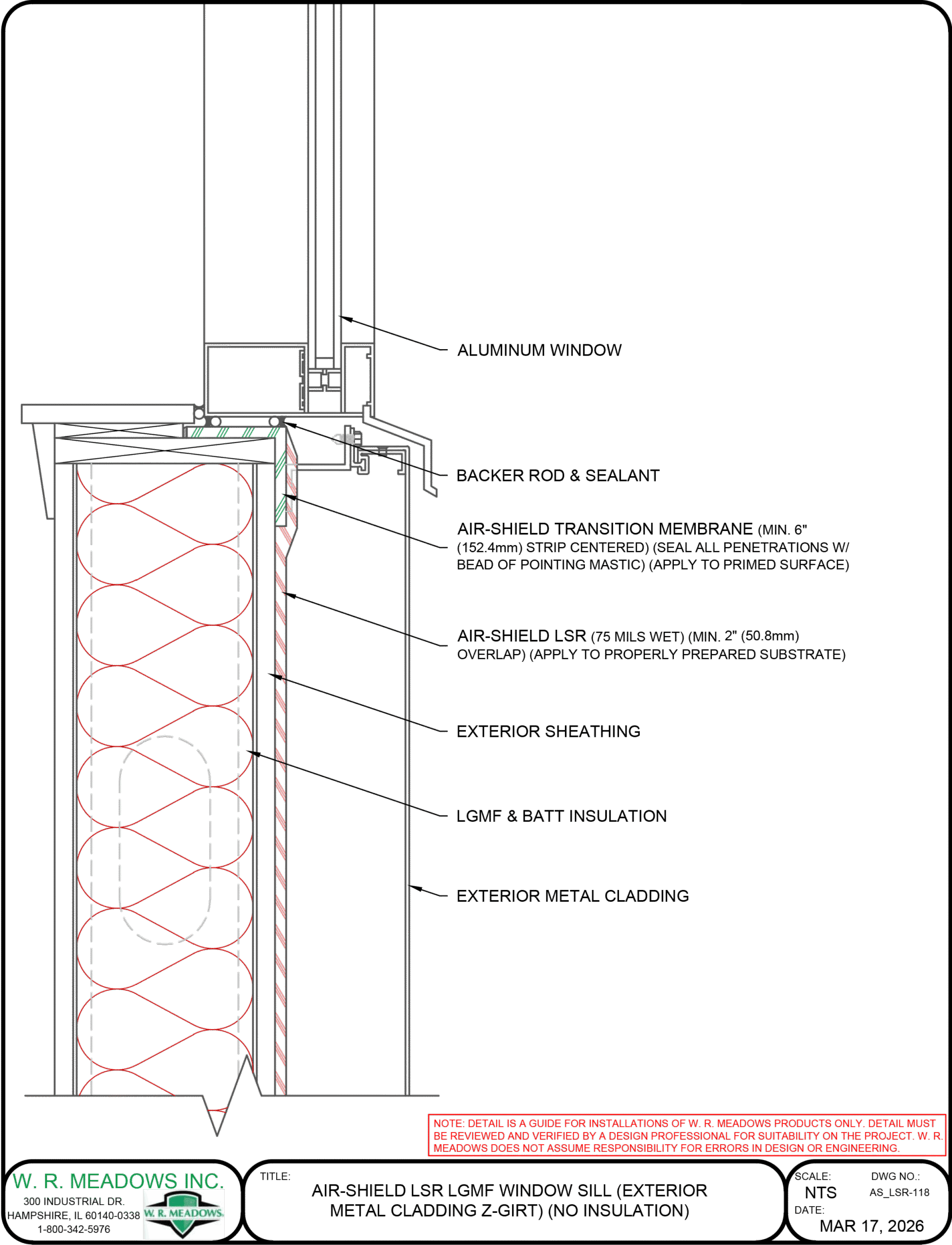

AIR-SHIELD LSR LGMF window sill detail with exterior metal cladding, Z-girt, and no insulation

Window Sill No Insulation

Window Sill — Z-Girt, No Insulation

Window sill detail for exterior metal cladding with Z-girt and no insulation.

Download DWG View PDF

Note: These details are provided as standard reference resources. Project conditions, substrate requirements, sequencing, compatibility, and final design responsibility should be reviewed by the project design professional and installation team.
