Name: PERMINATOR (20 MIL)
Brand: W. R. Meadows
SKU: 73071-us

PERMINATOR underslab vapor barrier is a new generation of polyolefin-based resin/chemical technology. PERMINATOR provides the vapor barrier industry with a highly effective, economical choice for helping to reduce the penetration of moisture and water vapor through the slab into the structure, thereby helping to reduce fungus, mildew, and mold growth. PERMINATOR also helps reduce radon gas from entering the structure.

Sustainability Letter

Tech Literature

Data Sheets

Specs & Details

CAD Details

CAD Details

Product Data Sheet

03 33 00
07 26 16

No. 723-20

PERMINATOR_® (20 MIL)
20 Mil Underslab Vapor Barrier

DESCRIPTION

PERMINATOR is tough enough to withstand normal construction jobsite conditions and traffic. It will not crack, puncture, snag, split, or tear easily.

PERMINATOR prevents uncontrolled moisture from entering the slab allowing the slab to maintain the maximum slab moisture emission rate and relative humidity level as allowed by flooring manufacturer’s specifications.

PERMINATOR (20 MIL) is furnished in 105’ (32 m) long rolls.

Installation is quick and easy. All joints/seams, both side and end, should be overlapped 6” (152.4 mm) and taped using 4” (101.6 mm) wide PERMINATOR TAPE from W. R. MEADOWS. PERMINATOR rolls fast and smoothly over level tamped soil or compacted fill.

USES
PERMINATOR underslab vapor barrier is primarily designed for underslab construction, where the soil has been tamped and leveled or compacted fill has been applied. The 105’ (32 m) long sheets are unrolled as is or cut to size and installed using the overlapping method. Overlaps are 6” (152.4 mm) wide and these seams are sealed using 4” (101.6 mm) wide PERMINATOR TAPE.

PERMINATOR can also be used as a protection course for waterproofing membranes. The desired sheet lengths are cut to size and retained at the top of the waterproofing membranes by PERMINATOR TAPE or TERMINATION BAR from W R. MEADOWS. The product can also be used in crawlspace applications.

FEATURES/BENEFITS

Available in 105’ (32 m) long rolls.
Helps reduce the penetration of moisture and water vapor through the slab into the structure.
Helps reduce fungus, mildew, and mold.
Helps reduce radon gas from entering a structure.
Resistant to methane gas.
Tough enough to withstand normal construction jobsite conditions and traffic … will not crack, puncture, snag, split, or tear easily.
Installs quickly and easily over tamped grade … no gravel, fill, or sand needed.
PERMINATOR prevents uncontrolled moisture from entering the slab allowing the slab to maintain the maximum slab moisture emission rate and relative humidity level as allowed by flooring manufacturer’s specifications.
20 mil thickness clearly marked on membrane for easy visual identification on jobsite.
VOC content is 0 g/L.
Made in America.

PACKAGING

14’ (4.3 m) wide, 105’ (32 m) long rolls

SPECIFICATIONS/STANDARDS

Meets or exceeds all requirements of ASTM E1745 Class A, B & C.
ACI 302.2R: Guide for Concrete Slabs that Receive Moisture Sensitive Flooring Materials

TECHNICAL DATA

PROPERTY	TEST METHOD	TYPICAL TEST RESULTS
Water Vapor Permeance:	ASTM E96	0.005 perms
Tensile Strength:	ASTM E154, Section 9	105 lbf/in
Puncture Resistance:	ASTM D1709, Method B	>3500 g
Methane Gas Permeability:	ASTM D1434, Procedure V	1.815×10^-1 GTR (L/m²*24hr)
Radon Transmittance¹:	SP Method No. 3873	<3.0×10^-9m/s

Footnote 1: SP Method No. 3873 cannot report radon transmittance values lower than 3.0 × 10⁻⁹ m/s, as normal indoor background radon levels interfere with measurements below this threshold.

APPLICATION

Surface Preparation … Level, tamp, or roll earth or granular material beneath the slab base as specified by supplied architectural drawings. Follow ASTM E1643-10 (standard practice and procedure for installation of vapor retarder used in contact with earth or fill under concrete slabs). Reference American Concrete Institute (ACI) 302.1R-04: Chapter 4, Section 4.1.4 – Base Material for sub-grade preparation prior to placement of PERMINATOR. (ACI) 302.1R-04: Chapter 4, Section 4.1.4 – Base Material for sub-grade preparation prior to placement of PERMINATOR.

Horizontal Application … Unroll PERMINATOR over the area where the slab is to be poured. Cut to size if necessary. PERMINATOR should completely cover the pour area. All joints/seams, both side and end, should be overlapped 6” (152.4 mm) and taped using 4” (101.6 mm) wide PERMINATOR TAPE. (Note: The PERMINATOR TAPE area of adhesion should be free from dust, dirt, and moisture to allow maximum adhesion of the pressure-sensitive tape.)

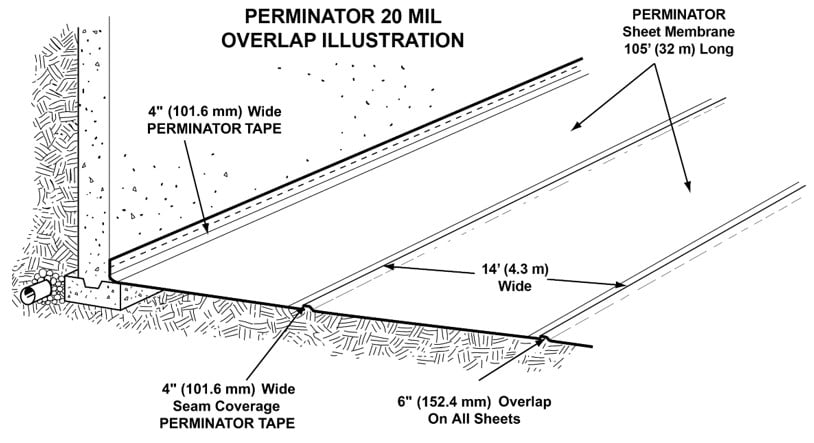

The most efficient installation method includes placing PERMINATOR on top of the footing and against the vertical wall. This will sandwich PERMINATOR between the footing, vertical wall, and poured concrete floor. (See illustration on page 2.) This will help protect the concrete slab from external moisture sources once the slab has been placed.

Before placing concrete slab, make sure all penetrations, block outs, and damaged areas are repaired/addressed.

Numerous municipal building codes do not allow the placement of vapor barriers over the footing, due to breaking of the bond between the wall and footing. Although this is not an optimal application method, W. R. MEADOWS approves this alternate method when required by building code.

Figure 1 COLLAR

Seal All Protrusions … Cut a slit around pipes, ductwork, rebar, and wire penetrations to place the initial layer of PERMINATOR. To further protect the concrete slab from external moisture sources, use a piece of PERMINATOR and place a collar around this as well.

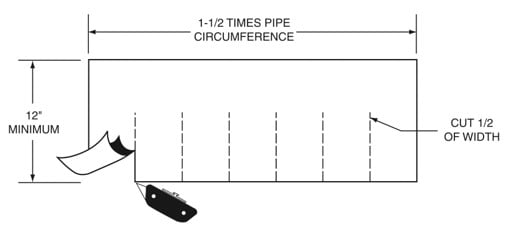

Cut a piece of PERMINATOR a minimum width of 12” (304.8 mm). The length should be 1.5 times the pipe circumference. With a roofer’s knife or scissors, cut “fingers” half the width of the film. See Figure 1.

Wrap around and tape the collar onto the pipe and completely tape fingers to the bottom layer of PERMINATOR, as shown in Figure 2.

In the event that PERMINATOR is damaged during or after installation, repairs must be made. Cut a piece of PERMINATOR large enough to cover any damage by a minimum overlap of 6” (152.4 mm) in all directions. Clean all adhesion areas of dust, dirt, and moisture. Tape down all edges using PERMINATOR TAPE.

NOTE: It is not necessary to overlay PERMINATOR with gravel or sand. PERMINATOR is tough enough to withstand normal construction abuse and traffic. Most flooring companies recommend the placement of the concrete slab directly on the vapor barrier. We agree, since this eliminates the potential for trapping moisture in a blotter-effect, causing it to resurface through the slab into the flooring systems. Consult local building codes and regulations, plus architectural and design firm guidelines, prior to application.

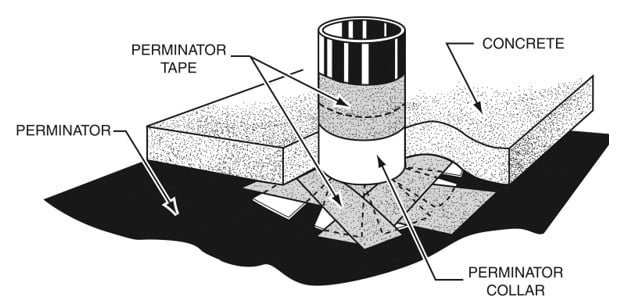

Figure 2: COLLAR INSTALLATION

Vertical Wall Application … Install the appropriate W. R. MEADOWS waterproofing membrane, such as MEL-ROL, MEL-ROL LM, HYDRALASTIC 836, MEADOW-PRUF CO-SPRAY or VERTIBARRIER NS according to installation instructions. While the membrane is still tacky, install PERMINATOR as a protective course over the applied waterproofing membrane. Using TERMINATION BAR with concrete nails or PERMINATOR TAPE at the termination of the waterproofing membrane is advisable in some applications. Supervised care must be taken during backfilling against the material so that it is not damaged or punctured. If damage occurs, patch using the techniques outlined previously. When applying PERMINATOR TAPE to foundation walls, MEL-PRIMEadhesive from W. R. MEADOWS may be used to increase bond.

ACCESSORIES
MEL-DRAIN rolled matrix drainage system is designed to remove moisture from around footings and to relieve hydrostatic head pressures. Several different versions are available.

MEL-ROL LM, POINTING MASTIC, and MEL-ROL LIQUID MEMBRANE (two-component) may be used for stakes, small pipe, and rebar penetrations. Cut PERMINATOR just big enough for the penetration. Liberally apply MEL-ROL LM, POINTING MASTIC, or MEL-ROL LIQUID MEMBRANE around the penetration to keep the integrity of the PERMINATOR membrane intact. MEL-ROL LM can be applied by brush, roller, or sprayer. POINTING MASTIC can be applied by caulking gun or trowel. MEL-ROL LIQUID MEMBRANE can be applied by trowel.

PERMINATOR TAPE is a self-adhesive tape for use in sealing vapor barrier seams and attachment to footings, protrusions, etc. It is offered in 4” (10 cm) widths and roll lengths of 180’ (55 m)/roll. It is packaged twelve rolls per carton. Coverage: One box of tape will adhere approximately 10 rolls of PERMINATOR.

TERMINATION BAR is provided in 10’ (3 m) lengths to attach PERMINATOR to walls as a protection course for vertical surface waterproofing applications.

PRECAUTIONS
PERMINATOR underslab vapor barrier does not negate the need for relief of hydrostatic heads. A complete drain tile system should be placed on the exterior of the footing and, in severe cases, on the interior of the footing as well. For maximum concrete performance and durability, the concrete floor slab design should provide for the lowest possible slump, yet assure complete hydration of the concrete. Refer to Safety Data Sheet for complete health and safety information.

PERMINATOR (20 MIL)
